Brightin Star APO 35mm f/1.7 ASPH

Brightin Star APO 35mm f/1.7 ASPH

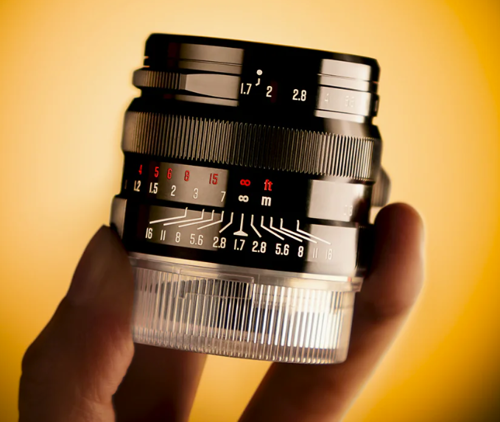

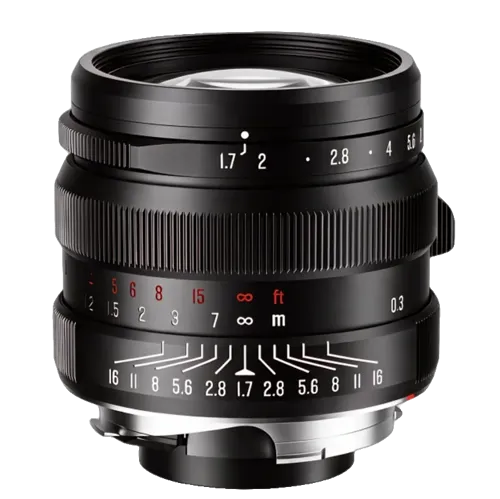

The Brightin Star APO 35mm f/1.7 ASPH is a full-frame manual-focus lens developed for Leica M-mount cameras. Its 35mm focal length, relatively fast f/1.7 aperture and compact metal construction make it suitable for street photography, documentary work, environmental portraits and available-light photography.

The optical design contains eleven elements in seven groups. Three double-sided aspherical elements provide six aspherical surfaces, while the apochromatic design is intended to suppress longitudinal and lateral chromatic aberration. Brightin Star developed the lens for high-resolution digital sensors, although practical image quality also depends on focus accuracy, camera calibration and production consistency.

The lens weighs approximately 266g and measures about 43mm in length. An eleven-bladed diaphragm maintains a rounded aperture opening, while the supplied metal hood helps shield the front element from oblique light.

Optical qualities

Rendering

The APO and aspherical construction is designed to combine high resolution with controlled colour fringing, distortion and field curvature. At the time of introduction, most published performance claims came from the manufacturer and launch material. Independent testing across multiple production samples remains important before assigning the lens a definitive rendering character.

At maximum aperture

At f/1.7, the lens provides useful subject separation and supports photography in lower light. The shallow focus zone makes accurate rangefinder calibration especially important. Residual spherical aberration, flare and longitudinal colour fringing should be evaluated in real photographs rather than inferred solely from the APO designation.

Stopped down

Stopping down increases depth of field and should make focus placement less critical. The eleven-bladed diaphragm is intended to retain a relatively rounded opening through the wider and middle apertures. Smaller apertures are useful for layered street scenes, architecture and landscapes where consistent detail across the frame is more important than maximum subject separation.

Close focusing

The focusing mechanism extends to approximately 0.3m and uses a long 307-degree rotation. This provides fine manual control at close distances but requires considerably more movement than a conventional rangefinder lens.

Rangefinder coupling operates to approximately 0.7m. Focusing between 0.7m and 0.3m therefore requires live view, an electronic viewfinder or an adapted mirrorless camera. Framing at short distances must also account for parallax when the optical viewfinder is used.

History

Development and Launch

Brightin Star first presented the APO 35mm f/1.7 ASPH publicly during 2026. The lens was positioned as a high-resolution Leica M-mount design combining apochromatic correction, aspherical elements and unusually close focusing in a compact metal body.

The project followed the growing availability of modern independent M-mount lenses designed for both traditional rangefinder operation and live-view photography. Its 0.3m minimum distance reflects this hybrid approach, retaining mechanical rangefinder coupling for normal distances while allowing substantially closer focusing with electronic assistance.

Production Evolution

Early presentations and campaign material described a final configuration of eleven elements in seven groups, six aspherical surfaces, an eleven-bladed diaphragm, 0.3m minimum focus and approximately 266g weight. Specifications published during development should be checked against the delivered production version, because prototype details can change before commercial release.

Special Editions/Variants

No separate optical generations or factory special editions have been confirmed. Differences in prototype finish, campaign presentation or supplied accessories should not automatically be treated as distinct lens versions.

Collector Notes

Confirm that an example is the full-frame APO M 35mm f/1.7 ASPH rather than Brightin Star’s earlier APS-C 35mm f/1.7 lens. The two products share the same focal length and aperture but have different formats, mounts, optical designs and intended applications.

Check the rangefinder calibration at several distances between infinity and 0.7m. For closer work, inspect focus through live view because the mechanical rangefinder no longer provides coupled confirmation. The long focusing rotation should move evenly without binding, while the aperture ring and eleven-bladed diaphragm should operate consistently.
