Leica Elmarit-M 28mm f/2.8 ASPH. II

Leica Elmarit-M 28mm f/2.8 ASPH. II

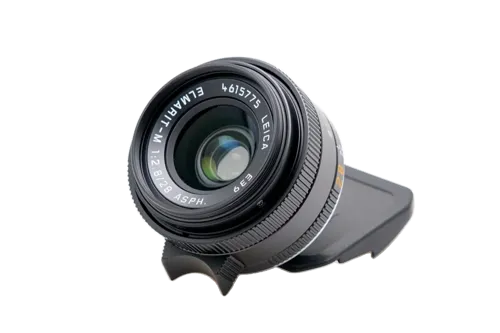

The Leica Elmarit-M 28mm f/2.8 ASPH. II is a compact modern wide-angle lens for the Leica M system. Introduced in 2016, it replaced the earlier Elmarit-M 28mm f/2.8 ASPH. 11606 and retained the core Elmarit concept of a small, high-performance 28mm lens with an f/2.8 maximum aperture [1][2]. It uses an 8-element, 6-group optical design with one aspherical surface, a 0.7 m minimum focusing distance, E39 filter thread, 10 diaphragm blades, and Leica M bayonet mount with 6-bit coding [1].

The lens is notable for its very small physical size within the Leica M lineup. Leica lists the lens at 30.7 mm long without hood, 52 mm largest diameter, and 175 g weight, making it one of the most compact modern Leica M wide-angle lenses [1]. The lens is rangefinder coupled, manually focused, and designed for use on both film and digital M cameras. Leica describes the optical design as practically distortion-free across the focusing range from 0.7 m to infinity, with only slight intrusion into the viewfinder field [1].

For LeicaLensList, this entry should be kept separate from the earlier pre-ASPH Elmarit-M 28mm versions and from the first ASPH version, model 11606. The ASPH. II version is commonly associated with order number 11677 in black anodized finish, while a Made-in-Portugal black version with order number 11711 was later sold in selected markets [3]. Both are generally treated as the same optical generation, but model number, country marking, packaging, and market origin should be checked for collector accuracy.

History

Development and Launch

The Elmarit-M 28mm line is Leica’s long-running compact 28mm f/2.8 wide-angle family for the M system. The ASPH. II version was introduced in January 2016 as the successor to the earlier Elmarit-M 28mm f/2.8 ASPH. 11606, which had been produced until 2015 [2]. Leica’s 2016 technical sheet presents the lens as a new compact M lens with an aspherical element, high imaging performance, low distortion, and a weight of 175 g [1].

Production Evolution

The main catalog version is the black anodized Leica Elmarit-M 28mm f/2.8 ASPH. with order number 11677 [1]. A later Made-in-Portugal version, order number 11711, was introduced for selected markets and retained the same general specification and Leica M compatibility [3]. The major differences are therefore best treated as production and market-code differences rather than separate optical formulas.

Special Variants

The principal documented variants are the Germany-made black anodized version 11677 and the Made-in-Portugal black version 11711 [1][3]. No major silver, titanium, safari, black paint, or limited-edition factory variant of the ASPH. II version is widely documented as a standard catalog lens. Earlier Elmarit-M 28mm lenses, including pre-ASPH versions and the first ASPH 11606, should be treated as separate database entries.

Collector Notes

Collectors should confirm the order number, 6-bit coding, country marking, supplied screw-on hood, threaded protection ring, original box, caps, and E39 filter compatibility. The ASPH. II version should not be confused with the first ASPH version 11606, which has a different hood arrangement and belongs to the previous production generation [2]. Condition checks should include rangefinder coupling accuracy, smooth focusing, aperture click feel, coating marks, dust, haze, edge separation, and signs of impact around the small front barrel and hood thread.
