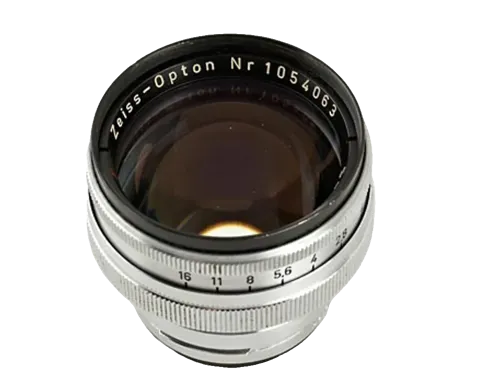

Carl Zeiss Opton Sonnar 50mm f/1.5

Carl Zeiss Opton Sonnar 50mm f/1.5

The Carl Zeiss Opton Sonnar 50mm f/1.5 represents the first West German post-war generation of the fast Contax standard lens. Introduced in 1950, it uses a seven-element, three-group optical construction and factory-applied anti-reflection coating.

The lens fits the Contax inner bayonet. Unlike external-bayonet Contax lenses, it has no independent focusing helicoid. Focusing is performed by the camera's internal helical mechanism, which rotates the mounted lens and couples it to the rangefinder. The practical minimum focusing distance is approximately 0.9 metres, although this is partly determined by the camera body or adapter.

Optical qualities

Rendering

At f/1.5, the Sonnar combines a sharply defined central subject with gentler detail toward the outer field. Out-of-focus transitions are smooth, while highlights and brighter backgrounds can retain the characteristic structure of a fast, three-group Sonnar design.

Sharpness

Central sharpness is already useful at maximum aperture. The outer image is softer and more affected by residual aberrations. Stopping down to f/2.8 or f/4 produces a substantial increase in overall contrast and field consistency.

Vignetting and aberrations

Visible corner darkening is normal at f/1.5. Coma and reduced edge definition can appear around point light sources near the frame boundaries. These characteristics diminish as the aperture is closed.

Contrast and flare

Factory coating gives the Opton lens appreciably stronger contrast than an uncoated pre-war Sonnar. The small number of air-spaced groups also limits the number of reflective interfaces, although flare and veiling can still occur in demanding backlight.

At maximum aperture

Maximum-aperture performance should be evaluated with a correctly calibrated camera. A coupled rangefinder measures distance through a mechanical cam and does not inspect the image plane directly. Small errors in the body, mount or lens can therefore shift the sharp plane. Subject movement and field curvature may also be mistaken for optical softness. A clean, properly assembled lens should be tested at several distances before conclusions are drawn.

The widest setting provides the greatest light transmission and the least depth of field available from the design. Contrast can be reduced by residual aberrations, internal reflections or aged coatings. Bright point sources may show glow or flare. These effects vary between examples and should not be presented as a fixed signature of every surviving lens.

Stopped down

Closing the diaphragm increases depth of field and generally improves consistency across the 35mm frame. Middle apertures are often the practical choice for documentary work, landscapes and architecture. The smallest aperture provides more depth but is not automatically the sharpest setting because diffraction gradually reduces fine contrast.

Aperture shape depends on blade count and mechanical condition. Oil, bent blades or an incorrectly assembled iris can change both operation and out-of-focus highlights. Published blade counts should remain tied to the exact barrel version rather than copied between mounts.

Handling and compatibility

Contax and Kiev rangefinder lenses use either the internal standard-lens bayonet or the external bayonet. These interfaces serve different mechanical purposes even though they belong to the same camera system. Similarity to Nikon S or another rangefinder mount does not guarantee correct registration, coupling or infinity focus. A suitable adapter must reproduce the required focusing mechanism and keep the rear assembly clear of internal camera parts.

Historical lenses should not be judged from one sample alone. Haze, fungus, separation, cleaning damage, displaced elements and dried lubricant can alter contrast and focus more than modest design differences. Film choice, processing, digital sensor cover glass and adapter tolerances also influence results. A hood may reduce oblique flare but cannot correct internal contamination.

History

Development and Launch

Production began in 1950 at the Carl Zeiss facility in Oberkochen. The Opton name identified this early West German production during a period when the use of the Carl Zeiss name was still contested between the eastern and western companies.

Production Evolution

Early lenses generally have an all-chrome appearance. A black filter-ring treatment appeared during subsequent production. Most examples stop down to f/16, although a smaller production variation with an f/22 setting is known.

By 1953, Carl Zeiss markings began replacing the Opton designation. The Opton-marked lenses remain a recognisable factory generation and are therefore maintained as a separate profile.

Special Editions/Variants

Chrome barrels, black filter-ring versions, differences in coating marks and the uncommon f/22 aperture scale are production variations within the Opton family. They share the same essential optical and mounting identity.

Collector Notes

Because the entire lens rotates during focusing, aperture operation can feel less direct than on a lens with its own helicoid. Check that the aperture ring moves freely throughout the focusing range. Internal haze, cleaning marks, coating damage and oil on the numerous diaphragm blades can materially affect performance and value.
