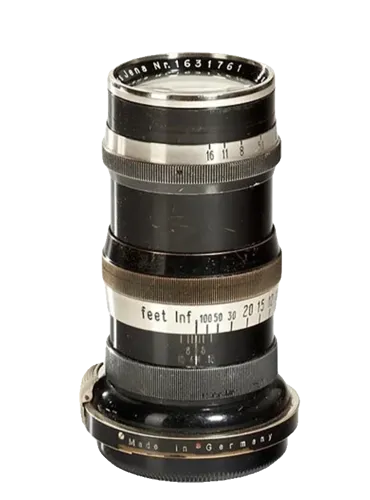

Carl Zeiss Jena Sonnar 135mm f/4

Carl Zeiss Jena Sonnar 135mm f/4

The Carl Zeiss Jena Sonnar 135mm f/4 is a pre-war telephoto lens made for the Contax rangefinder system. Introduced in 1932, it combines a compact four-element, three-group Sonnar construction with a relatively bright f/4 maximum aperture.

The lens mounts on the Contax external bayonet and incorporates its own focusing helicoid. Focusing is coupled to the camera rangefinder, with a documented minimum focusing distance of approximately 2.6 metres.

Physical specifications changed during the long production period. Early black and nickel lenses, later chrome examples and wartime versions can differ in barrel shape, accessory fitting, materials and weight. Dimensions and diaphragm construction should therefore be recorded for an individual specimen rather than applied to the entire profile.

Optical qualities

Rendering

The 135mm Sonnar produces the compressed perspective and narrow field of view expected from a classic rangefinder telephoto. Its simple four-element construction gives a comparatively direct rendering, with strong central definition and smooth transitions outside the plane of focus.

Sharpness

Performance is strongest around the centre at f/4. Stopping down generally increases contrast and improves definition across more of the image field. The long minimum focusing distance means the lens is better suited to distant portraits, landscape details and general telephoto work than to tight close-ups.

Contrast and flare

Most pre-war examples are uncoated and produce lower global contrast than later coated lenses. Strong light entering the front element can cause veiling flare, making an appropriate hood particularly useful. A limited number of late examples received Zeiss coating, but coating should be verified on the individual lens.

At maximum aperture

Maximum-aperture performance should be evaluated with a correctly calibrated camera. A coupled rangefinder measures distance through a mechanical cam and does not inspect the image plane directly. Small errors in the body, mount or lens can therefore shift the sharp plane. Subject movement and field curvature may also be mistaken for optical softness. A clean, properly assembled lens should be tested at several distances before conclusions are drawn.

The widest setting provides the greatest light transmission and the least depth of field available from the design. Contrast can be reduced by residual aberrations, internal reflections or aged coatings. Bright point sources may show glow or flare. These effects vary between examples and should not be presented as a fixed signature of every surviving lens.

Stopped down

Closing the diaphragm increases depth of field and generally improves consistency across the 35mm frame. Middle apertures are often the practical choice for documentary work, landscapes and architecture. The smallest aperture provides more depth but is not automatically the sharpest setting because diffraction gradually reduces fine contrast.

Aperture shape depends on blade count and mechanical condition. Oil, bent blades or an incorrectly assembled iris can change both operation and out-of-focus highlights. Published blade counts should remain tied to the exact barrel version rather than copied between mounts.

Handling and compatibility

Contax and Kiev rangefinder lenses use either the internal standard-lens bayonet or the external bayonet. These interfaces serve different mechanical purposes even though they belong to the same camera system. Similarity to Nikon S or another rangefinder mount does not guarantee correct registration, coupling or infinity focus. A suitable adapter must reproduce the required focusing mechanism and keep the rear assembly clear of internal camera parts.

Historical lenses should not be judged from one sample alone. Haze, fungus, separation, cleaning damage, displaced elements and dried lubricant can alter contrast and focus more than modest design differences. Film choice, processing, digital sensor cover glass and adapter tolerances also influence results. A hood may reduce oblique flare but cannot correct internal contamination.

History

Development and Launch

The 135mm f/4 Sonnar appeared during the first generation of the Contax rangefinder system. Its compact telephoto construction offered a more practical alternative to longer and slower lenses requiring separate reflex-focusing attachments.

Production Evolution

Early lenses were supplied in black and nickel finishes and used slip-on accessories. Chrome barrels and 40.5mm screw-in filter fittings appeared on later production. Aperture scales, maximum minimum aperture and barrel construction also changed over time.

Because these changes span more than a decade, no single blade count, weight or barrel dimension can safely represent every pre-war example.

Special Editions/Variants

Known variations include black and nickel lenses, chrome versions, mixed black and chrome finishes and wartime barrels using alternative materials or surface treatments. These remain production variants of the same basic lens identity.

Collector Notes

Condition is more significant than cosmetic finish alone. Buyers should inspect for internal haze, cleaning marks, separation, stiff focusing and inaccurate rangefinder coupling. Original hoods, caps and compatible filter adapters are useful because the accessory fitting varies between early and later lenses.
