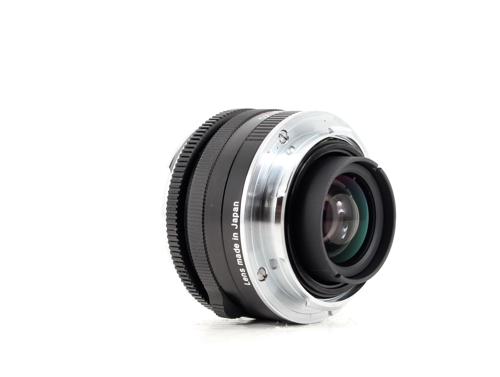

Carl Zeiss C Biogon T* 35mm f2.8 ZM

Carl Zeiss C Biogon T* 35mm f2.8 ZM

Among the ZM line's three 35mm options, this is the slow, small one, and that is exactly its appeal. The "C" stands for compact, and Zeiss leaned on the near-symmetrical Biogon layout to keep the lens short while still pursuing very high correction [1][2]. Where many slower 35mm designs settle for five or six elements, Zeiss used a more complex seven-element formula here, which reviewers have repeatedly tied to its reputation for resolution that rivals or beats Leica's own 35mm Summicrons [2]. It was conceived as part of the Zeiss Ikon ZM rangefinder system, where ZM denotes the Leica M bayonet, but it mounts and rangefinder-couples on any M body, including older Leica M, CL and Minolta CLE cameras, some of which lack native 35mm frame lines [1].

The optical block is seven elements in five groups with Zeiss T* multicoating, and the diaphragm uses ten straight blades that stop down to f/22 with third-stop clicks rather than the half-stop detents common on Leica lenses [2]. Build is metal throughout, with engraved and paint-filled markings, a smooth focus action and a small raised nub on the focusing ring that lets the user set distance by feel, which several reviewers single out as a strong handling trait [1][2]. The lens is light and short enough to cause only minor viewfinder blockage, and it is widely regarded as an ideal compact street optic [1]. One recurring practical complaint is the 43mm filter thread, an unusual size that does not match the 39mm or 46mm threads of most Leica glass, so users typically add a step ring or carry a separate filter set [2].

The lens is sold in black and silver finishes, identified by Zeiss part numbers 1486-393 for the black version and 1486-394 for the silver, and reviewers note the silver barrel's markings are easier to read in low light than the red footage scale on the black version [2]. A precision bayonet metal hood is an extra-cost accessory rather than included in the box, and is functionally identical to a Voigtländer hood that some owners substitute to save money [1]. Production is in Japan by Cosina under Zeiss specification and quality control [1][2].

Optical qualities

Rendering Documented character centers on very high sharpness and contrast with a fairly neutral, modern look that still avoids feeling completely clinical [1][2]. Reviewers describe it as crisp corner to corner even wide open, with the center already extremely sharp at f/2.8 [1][2].

Sharpness This is the lens's headline trait. Testing on a Leica M9 found it among the sharpest 35mm lenses available, sharper in the center than the Summicron-M 35mm f/2 ASPH while the Leica held a slight edge in the extreme corners, and it is reported as slightly sharper in the corners than the f/2 Biogon ZM [2].

Contrast and color Output is high in contrast with a neutral color balance, useful enough that one film reviewer needed less of a development push than usual to reach desired contrast [1][2].

Bokeh and transitions Out-of-focus rendering is considered a little better than average but not a selling point, since a slow wide-angle rarely throws much out of focus; those wanting stronger subject separation are usually pointed to the faster f/2 version [1][2].

Distortion and vignetting Distortion is effectively invisible in normal use, measured as very mild pincushion, and is lower than the Summicron-M 35mm f/2 ASPH [2]. Some falloff is visible wide open on a full-frame M9 and clears at smaller apertures [2].

History

Development and Launch Zeiss introduced the lens on 19 March 2008 as part of the ZM rangefinder system built around the Zeiss Ikon ZM body [2]. It joined the existing f/2 Biogon as a slower, more compact 35mm option, with the later f/1.4 35mm in the line using a retrofocus Distagon layout rather than the Biogon family [2].

Special editions No major factory special editions or military variants are widely documented for this lens; the principal catalogue variation is the choice of black or silver finish [2].

Collector Notes Buyers should verify finish against the part numbers (1486-393 black, 1486-394 silver) and remember the hood is a separate accessory often missing from used kits [2]. The 43mm filter thread is the most common point of friction, so confirm any included filters or step rings fit, since standard Leica 39mm and 46mm filters will not thread directly [2]. As a smooth all-metal modern lens it has few inherent reliability issues, but as with any rangefinder lens, focus accuracy can vary slightly sample to sample and is worth checking against the intended body [2].

Sources

• [1] Casual Photophile. Zeiss 35mm F/2.8 C Biogon ZM - Lens Review. https://casualphotophile.com/2017/02/26/zeiss-35mm-f2-8-c-biogon-zm-lens-review/
• [2] Ken Rockwell. Zeiss 35mm f/2.8 ZM Review. https://www.kenrockwell.com/zeiss/zm/35mm-f28.htm
