Voigtländer Super Wide-Heliar 15mm f/4.5 III

Voigtländer Super Wide-Heliar 15mm f/4.5 III

The third generation of Cosina's compact 15mm ultra-wide marked a clean break from its predecessors, swapping the long-running optical formula for a larger, more complex design built with digital sensors in mind [1][2]. Sold under the Voigtländer name but manufactured by Cosina in Japan, this version is the first 15mm Super Wide-Heliar to combine rangefinder coupling, a conventional front filter thread, and an optical layout reworked specifically to address the corner softness and color shifts that plagued earlier copies on full-frame digital bodies [1][2]. Its roughly 110-degree angle of view makes it one of the widest rectilinear lenses available in the Leica M system [1].

The III uses an 11-element, 9-group formula incorporating one aspherical element, which Voigtländer credits with controlling chromatic aberration, limiting distortion, and improving peripheral illumination compared with the older 8-element design [1][2]. The lens is rangefinder coupled and focuses to 0.5 m, with a ten-bladed aperture that stops down to f/22 and clicks in half stops on the M version [1]. Construction is all metal, including the barrel, aperture ring, nameplate, and the built-in hood, with a deeply contoured, smooth focusing ring and 58 mm filter threads that remain accessible past the integral hood [1]. Because the lens projects an image circle far wider than any M-camera viewfinder shows, an accessory optical finder is typically used for accurate framing, though the enormous depth of field at small apertures lends itself to zone focusing [1].

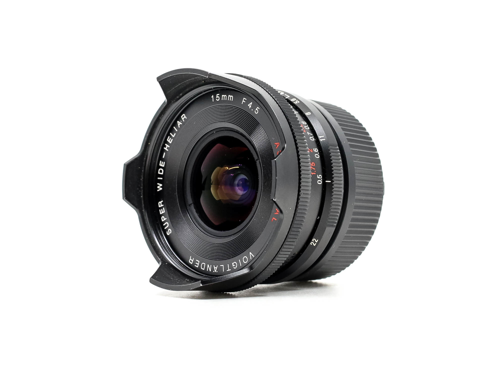

Voigtländer produced the 15mm Super Wide-Heliar in several distinct generations, and identifying them matters to buyers. The original was an LTM/M39 lens without rangefinder coupling, no filter thread, and an 8-element, 6-group design; the VM version II moved to a coupled M-mount with a 52 mm filter thread while keeping the same optical formula; the version III introduced the new 11/9 design with the 58 mm filter thread and a noticeably larger barrel [2]. A native Sony E-mount sibling shares the III's optics but focuses closer and is larger and heavier [1][2]. The size increase of the III is the main trade-off relative to the very compact version II, which some users still prefer for its pocketability on film bodies [1][2].

Optical qualities

Rendering Reviewers describe the III as sharp across the frame at most apertures, with peak performance around the middle of the aperture range before diffraction softens results at the smallest stops [1]. Chromatic aberration is generally well controlled, with only minor fringing in high-contrast areas [1].

Flare resistance The built-in metal hood is effective, and the lens holds contrast well even pointed near the sun, producing small flares and, when stopped down, pronounced sunstars around bright point sources [1].

Distortion and vignetting Distortion is held low for such a wide lens, but vignetting is heavy and persists even stopped down to f/8 or f/11, a trait that is easily corrected in post-processing [1]. The redesigned optics largely resolved the severe corner smearing and color shift of earlier versions on full-frame digital sensors, although results can still depend on the specific camera's sensor stack [1].

History

Development and Launch The III arrived in 2015 as Cosina's response to the difficulties earlier 15mm Super Wide-Heliar lenses had on digital rangefinders [1][2]. The older symmetrical design sat very close to the sensor and struggled with the cover-glass filter stack of digital cameras, producing color casts and soft corners; the III's revised formula was intended to make the lens behave well on modern bodies while retaining the M-mount and rangefinder coupling for film and Leica use [1][2].

Production Evolution Across its lifetime the 15mm Super Wide-Heliar evolved from a non-coupled M39 lens to a coupled M-mount with a small filter thread, and then to the III's larger 11-element design with a 58 mm filter thread, followed by a native E-mount edition that shares the III's optics [2]. The optical change in the III was the most significant, replacing the long-serving 8-element, 6-group formula and increasing the lens's overall size [2].

Collector Notes The most common confusion is between the three generations, which differ in mount, filter thread, optical formula, and digital behavior, so buyers should confirm exactly which version a listing describes rather than relying on the shared "15mm Super Wide-Heliar" name [2]. Prospective owners shooting on a rangefinder should budget for the accessory 15mm finder, since the lens shows nothing usable in the camera's own viewfinder, and should keep the built-in hood and caps in mind when checking completeness [1].

Sources

• [1] Casual Photophile (James Tocchio). Voigtlander Super Wide Heliar 15mm F/4.5 Aspherical III - M and E Mount Lens Review. https://casualphotophile.com/2016/08/26/voigtlander-super-wide-heliar-15mm-f4-5-aspherical-iii-m-and-e-mount-lens-review/
• [2] phillipreeve.net (BastianK). Review: Voigtlander VM 15mm 4.5 II Super-Wide-Heliar. https://phillipreeve.net/blog/review-voigtlander-vm-15mm-4-5-ii-super-wide-heliar/
