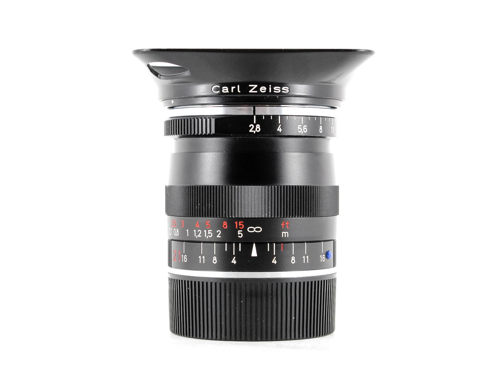

Carl Zeiss Biogon T* 21mm f/2.8 ZM

Carl Zeiss Biogon T* 21mm f/2.8 ZM

The Biogon T* 21mm f/2.8 ZM revives a classic rangefinder discipline: the fast super-wide. Twenty-one millimeters was a staple of wide-angle photography for decades, and that work largely belonged to rangefinder cameras because the short flange distance made such designs far easier to realize than on SLRs [1]. The lens covers a diagonal angle of view of roughly 90 degrees, a field that many wide-angle photographers find intuitive [1][2]. Compared with the slower 21 mm optics that preceded it, the f/2.8 maximum aperture gave Zeiss ZM users an unusually bright option in this focal length [1].

Optically the Biogon is a conventional, roughly symmetrical design built around nine elements in seven groups, with no aspherical or floating elements [1][2]. Reviewers describe it as a straightforward approach that relies on Zeiss T* anti-reflective coating rather than exotic glass, and the result is well regarded for low distortion and strong corner performance once stopped down [1]. The lens is all metal and glass, with a 46 mm filter thread shared with several other ZM wide-angles, a ten-bladed diaphragm, and a 0.5 m minimum focus distance that is closer than the rangefinder mechanism itself can couple, so close work at the wider apertures benefits from an electronic finder [1]. In place of a Leica-style focusing tab, ZM lenses use a small nub on the focus ring; with the nub at the six o'clock position the lens sits near 1.2 m [1]. The aperture ring clicks in one-third stops, and on a Leica M an external 21 mm viewfinder is required because no Leica M finder shows 21 mm frame lines [1]. The lens is rangefinder coupled and is not factory six-bit coded, so on some digital M bodies users apply a Leica lens correction profile to manage color shift [1].

Like the rest of the ZM line, the 21 mm Biogon was launched in 2004 alongside the Zeiss Ikon film rangefinder and is manufactured by Cosina in Japan [1]. The lens has been offered in two finishes, black and silver, and unlike a Leica purchase the matching lens hood is sold separately [1]. Documentation lists no major factory special variants for this model.

Optical qualities

Rendering Reviewers consistently describe the Biogon 21/2.8 as a high-resolution, high-contrast wide-angle with a modern, technically precise rendering rather than a soft vintage look [1].

Sharpness The lens is regarded as very sharp with strong micro-contrast, usable wide open for architecture and landscape, with very good corner sharpness from about f/4 onward [1].

Distortion and vignetting Distortion is very low, an asset for architectural subjects [1]. Vignetting is visible wide open but is easy to correct in software [1].

Flare resistance The T* coating gives strong flare resistance; one reviewer found the lens largely immune even without its hood, with the trickiest case being a light source just outside the frame [1].

Aberrations Chromatic aberration is well controlled, with purple fringing hard to provoke even in high-contrast situations, though it is not completely absent [1].

Bokeh and transitions A 21 mm f/2.8 lens has extensive depth of field, so it is not chosen for background blur, but reviewers note its out-of-focus rendering is pleasant within those limits [1].

Digital use On a Leica M10 color drift was not a real issue, but on older digital M bodies such as the M262 it can appear; a profile for an older Leica 21 mm or 28 mm lens, or a software correction, is suggested as a remedy [1].

History

Development and Launch The Zeiss ZM lens program, including the 21 mm Biogon, was introduced in 2004 together with the Zeiss Ikon rangefinder, and most of the line is built by Cosina in Japan, the same factory that produces Voigtländer VM lenses [1]. The 21 mm filled a gap between slower super-wides and very fast, expensive alternatives in the M-mount market, and it positioned itself close in optical quality to Leica's 21 mm Super-Elmar while being a half stop faster [1].

Collector Notes A known concern with ZM lenses is the so-called Zeiss wobble, in which the focus ring can lose its tight connection to the internal mechanism, more often reported on older copies; buyers are advised to check focus feel before purchasing [1]. The lens is sold without a hood, and the dedicated square hood carries part number 000000-1365-665, which also fits the Biogon 25/2.8 and C Biogon 21/4.5 [1]. Reviewers note the original 46 mm front cap is poor and recommend a third-party replacement, and that many used copies are sourced from Japan, where buyers should account for customs [1]. As a published handling note, one in-depth review measured a tested sample at 62 mm long and 294 g with its weight given as carried with caps, figures that fall just under the catalogued length and weight; this is a difference in measurement convention rather than a contradiction of the recorded specifications [1].

Sources

• [1] Macfilos (Joerg-Peter Rau). The M Files 12: Biogon 21, Biogon 28 and Tele-Tessar 85 from the Zeiss ZM lens lineup. https://www.macfilos.com/2022/01/07/the-m-files-12-zeiss-zm-biogons-21-and-28-and-tele-tessar-85/
• [2] Ffordes Photographic. Zeiss 21mm F2.8 Biogon ZM - Black. https://www.ffordes.com/p/4047865200042/leica-m/21mm-f28-biogon-zm-black
