Canon Serenar 35mm f/3.5

Canon Serenar 35mm f/3.5 LTM

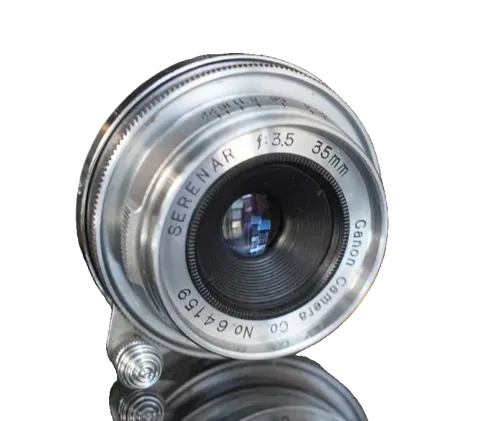

The Canon Serenar 35mm f/3.5 LTM is an early Canon wide-angle lens for Leica screw-mount rangefinder cameras. Canon Camera Museum lists the lens as marketed in March 1950, sold overseas only, with a 35mm focal length, f/3.5 maximum aperture, 4 elements in 3 groups, f/22 minimum aperture, 1.07m closest focusing distance and 185g weight [1].

The lens belongs to Canon’s early postwar Leica-thread-mount rangefinder system, before the Canon name fully replaced the Serenar branding on lenses. It should be kept separate from the later Serenar 35mm f/3.2, Serenar 35mm f/2.8 I, Canon 35mm f/2.8 II, Canon 35mm f/1.8 and Canon 35mm f/2 LTM lenses. Those are related Canon screw-mount wide-angle lenses, but they use different specifications, optical formulas or production periods [1] [2] [3].

This entry covers the original 35mm f/3.5 Serenar in Leica L39 / LTM / M39 screw mount. It is a rangefinder-coupled lens and can be used on Leica screw-mount cameras, Canon rangefinder cameras, and Leica M bodies with a suitable L39-to-M adapter.

Optical qualities

Rendering

The Serenar 35mm f/3.5 is a compact early Canon wide-angle with a simple 4 element, 3 group design. It should be understood as a vintage low-speed 35mm lens rather than a later high-correction Canon wide-angle. User reports often describe it as compact and sharp, but with lower contrast than later Canon 35mm LTM lenses [5].

Sharpness

Reliable modern bench testing is limited. The lens can produce good practical sharpness when clean and stopped down, but performance is strongly copy-dependent. Because many examples are more than seventy years old, haze, cleaning marks, coating wear and mechanical calibration are important factors.

Contrast and color

Contrast is generally lower than later coated Canon LTM lenses such as the 35mm f/2.8 II or 35mm f/2. The lens should not be described as modern or high contrast. Condition matters heavily, especially because haze is a known issue in surviving copies [4] [6].

Distortion and vignetting

No reliable measured distortion or vignetting data was found. As an early compact 35mm rangefinder lens, it should be described conservatively unless tested from the exact copy.

Handling

The lens is small and lightweight for a 35mm rangefinder lens, though Canon lists a weight of 185g. The closest focusing distance is 1.07m according to Canon, which is slightly longer than the 1m close focus of many later Canon LTM wide-angle lenses [1] [2] [3].

Digital use

The lens can be used on Leica M cameras with an L39-to-M adapter and on mirrorless cameras with suitable adapters. On digital bodies, lower contrast, flare, haze and edge behavior may be more obvious than on film. Rangefinder coupling and infinity focus should be checked with the exact adapter and camera body.

History

Development and Launch

The Serenar 35mm f/3.5 was marketed in March 1950 and appears among Canon’s earliest postwar screw-mount wide-angle lenses [1]. It arrived before Canon’s faster 35mm f/3.2 and 35mm f/2.8 Serenar lenses, which were both marketed in 1951 and used 6 element, 4 group designs [2] [3].

Production Evolution

Public documentation does not clearly establish the full production end year. The lens sits at the beginning of Canon’s 35mm LTM wide-angle line, followed by the Serenar 35mm f/3.2 in June 1951 and the Serenar 35mm f/2.8 I in October 1951 [2] [3]. Later Canon 35mm LTM lenses became faster, more complex and often used larger or different filter sizes.

Special Editions/Variants

No confirmed commemorative factory special edition is documented. Collector-relevant differences are mainly engraving, early Serenar branding, chrome finish, condition, and whether the lens comes with the correct finder, caps, hood or case.

Collector Notes

Collectors should verify the Serenar 35mm f/3.5 engraving, Leica L39 / M39 screw mount, rangefinder coupling, infinity focus, serial number, chrome finish and optical condition. Important checks include haze, fungus, cleaning marks, coating wear, aperture operation, stiff focusing and damaged filter or mounting threads. Because seller titles sometimes mix Canon 35mm f/3.5, 35mm f/3.2 and 35mm f/2.8 lenses, the front-ring engraving should be used as the primary identification point.

Special editions

No confirmed factory commemorative special edition is currently documented.

Known collector-relevant variants and related versions include:

• Canon Serenar 35mm f/3.5 LTM, marketed March 1950, 4 elements in 3 groups, this entry.
• Canon Serenar 35mm f/3.2 LTM, marketed June 1951, 6 elements in 4 groups, separate entry.
• Canon Serenar 35mm f/2.8 I LTM, marketed October 1951, 6 elements in 4 groups, separate entry.
• Canon 35mm f/2.8 II LTM, later Canon-branded version, separate entry.
• Complete examples with original Canon 35mm finder, hood, caps or case, collector-relevant when documented.

Sources

• [1] Canon Camera Museum. Serenar 35mm f/3.5. https://global.canon/en/c-museum/product/s16.html
• [2] Canon Camera Museum. Serenar 35mm f/3.2. https://global.canon/en/c-museum/product/s15.html
• [3] Canon Camera Museum. Serenar 35mm f/2.8 I. https://global.canon/en/c-museum/product/s14.html
• [4] Fotohandel Delfshaven. Canon Serenar 35mm f/3.5 LTM. https://fotohandeldelfshaven.nl/product/canon-serenar-35mm-f-3-5-ltm/
• [5] Flickr Canon Rangefinder discussion. Serenar 35mm f/3.5. https://www.flickr.com/groups/780587@N21/discuss/72157620980935894/
• [6] Steven Kasapi. Canon Serenar 35mm f/3.5 LTM Disassembly. https://stevenkasapi.blog/canon-serenar-35mm-f3-5-ltm-disassembly/
