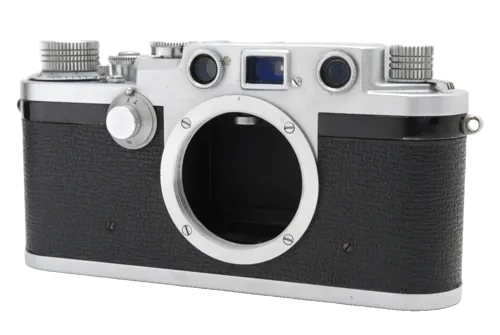

Nicca Type-5
The Nicca Type-5 is a LTM-mount film rangefinder camera, introduced in 1955. Leica camera price index →
Reference maintained by Thomas Boots
General
- Mount
- LTM
- Release Year
- 1955
- Type
- Film
- Model Number
- Type-5
- Serial Range
- Approximately 125001 to 13153x, observed collector range
Dimensions
- Weight
- 463g
- Width
- 139mm
- Height
- 71mm
Viewfinder & Shutter
- Framelines
- None, separate fixed 50 mm viewfinder and coupled rangefinder
- Shutter Speeds
- T, 1 s, 1/2 s, 1/5 s, 1/10 s, 1/15 s, B, 1/25 s, 1/50 s, 1/100 s, 1/200 s, 1/500 s and 1/1000 s
- Shutter Type
- Cloth
Features
- Hot Shoe
- No
- Tripod Socket
- Yes
- Self Timer
- No
- Flash Sync
- 1/25 s
Nicca Type-5
The Nicca Type-5 is the company's first die-cast LTM rangefinder. Introduced in 1955, it combines Leica IIIf-like controls with a removable, side-hinged rear flap that eases film loading [1].
Its cloth shutter reaches 1/1000 second. A single rear PC socket selects X or FP synchronization automatically according to shutter speed, with electronic X sync available through 1/25 second [1].
History
Development and Launch
The Type-5 was released in March 1955, with advertising documented in May. It moved Nicca from the smaller stamped Leica III pattern to a larger die-cast body inspired by the Leica IIIc and IIIf [1].
Production Evolution
Observed serials run approximately from 125001 to 13153x. The model introduced a revised shutter-speed sequence, a slow-speed dial lock and a single automatic-sync terminal. Later standard Nikkor 5 cm f/2 lenses gained a black aperture-scale band [1].
Special Variants
The Australian Snider 35 is a separately branded Type-5 derivative and should remain its own profile. Ordinary Type-5 lens and minor finish differences are not editions.
Collector Notes
Verify the side-hinged removable rear flap, black metal band above the covering, offset rear PC socket and 1/1000 setting. The loading door is unique among Nicca's standard Type-5 family and may be missing or damaged.
