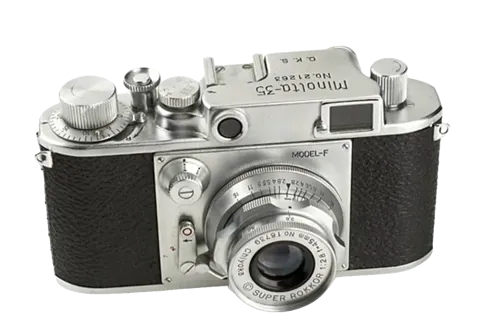

Minolta 35 Model F
The Minolta 35 Model F is a LTM-mount film rangefinder camera, introduced in 1952. Leica camera price index →
Reference maintained by Thomas Boots
General
- Mount
- LTM
- Release Year
- 1952
- Type
- Film
- Model Number
- Model F
- Serial Range
- Approximately 2139x to 2539x, observed collector range
Dimensions
- Width
- 135mm
- Height
- 75mm
Viewfinder & Shutter
- Magnification
- 0.7x
- Framelines
- None, combined fixed 45 mm viewfinder and coupled rangefinder
- Shutter Speeds
- T, 1 s, 1/2 s, 1/4 s, 1/8 s, B, 1/25 s, 1/35 s, 1/50 s, 1/100 s, 1/200 s and 1/500 s
- Shutter Type
- Cloth
Features
- Hot Shoe
- No
- Tripod Socket
- Yes
- Self Timer
- Yes
- Flash Sync
- Unknown, flashbulb synchronization through a non-PC socket
Minolta 35 Model F
The Minolta 35 Model F is a modest 1952 revision of Model E. It retains the LTM mount, approximately 24 x 34 mm image area, 0.7x combined rangefinder/viewfinder, hinged back, self timer and cloth shutter reaching 1/500 second [1].
Externally, Model F changes the flash connector and adds red numbered markings behind the self-timer control. The connector remains a non-PC type, and reliable exact synchronization speeds are not documented [1].
History
Development and Launch
Model F appeared in 1952. It is sometimes described as a domestic-market revision, but surviving English-language instructions show that export documentation existed [1].
Production Evolution
Observed body numbers run approximately from 2139x to 2539x. Its shutter cover, film guides and camera back largely continue the Model E construction [1].
Special Variants
No separately named special version is documented. Connector and marking differences define the normal Model F.
Collector Notes
Differentiate Model F from Model E through its engraved name, red self-timer markings and revised rear sync socket. Original manuals can be misleading because much of the Model E text and imagery was reused.
