Minolta 35 Model D
The Minolta 35 Model D is a LTM-mount film rangefinder camera, introduced in 1949. Leica camera price index →
Reference maintained by Thomas Boots
General
- Mount
- LTM
- Release Year
- 1949
- Type
- Film
- Model Number
- Model D, collector classification
- Serial Range
- Approximately 910x to 1059x for observed type a examples, with one documented type b around 1134x
Dimensions
- Width
- 135mm
- Height
- 75mm
Viewfinder & Shutter
- Magnification
- 0.7x
- Framelines
- None, combined fixed 45 mm viewfinder and coupled rangefinder
- Shutter Speeds
- T, 1 s, 1/2 s, 1/4 s, 1/8 s, B, 1/25 s, 1/35 s, 1/50 s, 1/100 s, 1/200 s and 1/500 s
- Shutter Type
- Cloth
Features
- Hot Shoe
- Yes
- Tripod Socket
- Yes
- Self Timer
- Yes
- Flash Sync
- Unknown, proprietary flashbulb synchronization

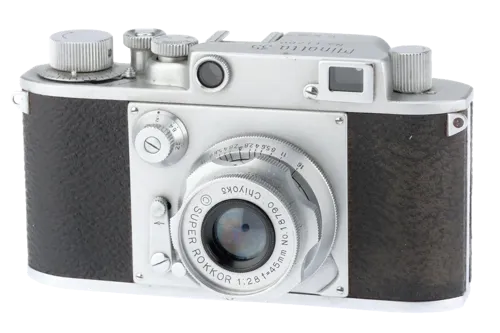

Minolta 35 Model D
The Minolta 35 Model D is a collector-defined 1949 LTM rangefinder. It retains the combined 0.7x finder, self timer, hinged back and cloth shutter to 1/500 second while adding strap lugs and revised rewind-release controls [1].
Type a uses an approximately 24 x 33 mm image gate. The much less frequently documented type b increases the width to approximately 34 mm [1].
History
Development and Launch
Model D followed the 1948 Model C and remained officially marketed as Minolta 35. Its letter designation was applied retrospectively by collectors [1].
Production Evolution
Observed type a serials span approximately 910x to 1059x. Only one type b example around 1134x is documented in the cited database, despite historical production claims suggesting a larger batch [1].
Special Variants
The two gate sizes define production types, not editions. Both belong under one Model D Standard model profile.
Collector Notes
Strap lugs, a rewind release beneath the counter and the front depression below the lens distinguish Model D from Model C. Verify gate width before assigning type a or b.
