Leica KE-7A Military

Leica KE-7A Military

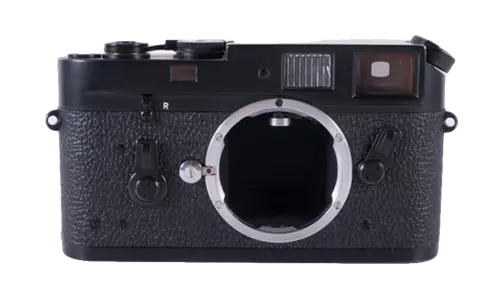

The Leica KE-7A is a military 35mm rangefinder camera manufactured by Ernst Leitz Canada in 1972 for the United States armed forces. It is based on the black chrome Leica M4 and uses the Leica M bayonet mount, a 0.72× combined rangefinder-viewfinder and a mechanical cloth focal-plane shutter.

Military-issued bodies carry a Federal Stock Number, contract designation and U.S. ownership marking on the rear. The camera was normally supplied as an outfit with the compact ELCAN 50mm f/2, a four-element lens developed specifically for the contract.

History

Military Contract

The KE-7A was prepared under a United States military procurement contract as a rugged still-picture camera. Although its controls and general construction follow the Leica M4, the military version received preparation intended to improve reliability in demanding environments.

The rear markings normally include:

• KE-7A model designation
• Federal Stock Number 6720-1654-7115
• Contract F42600-71-C-2429
• U.S. ownership marking

These markings distinguish an issued military body from the unmarked civilian-overrun version.

Production

A batch of 500 production cameras was assigned serial numbers 1294501 through 1295000. Approximately 440 were accepted for military supply, while roughly 60 surplus bodies were distributed through civilian channels.

The military and civilian cameras were not allocated clearly separated serial-number blocks. Serial number alone is therefore insufficient to confirm military provenance.

Several sources additionally document five earlier prototype or pre-production bodies numbered 1293771 through 1293775. These should be treated as prototype metadata rather than included in the regular production range.

Relationship to the Leica M4

The KE-7A is mechanically based on the Leica M4 and retains its manual film transport, rewind crank, removable baseplate and quick-loading film system.

Its finder provides automatically selected brightline frames for 35mm, 50mm, 90mm and 135mm lenses. The frames include automatic parallax compensation as the lens is focused.

The mechanical shutter provides speeds from 1 second through 1/1000 second plus B. Flash synchronisation is available at 1/50 second through a cable terminal. The accessory shoe has no electrical centre contact.

The KE-7A remains a distinct camera model because its military preparation, identifying marks, contract history and original ELCAN outfit are fundamental to its identity and collector classification.

Extreme-Condition Preparation

The military camera was prepared for operation across a broader environmental range than an ordinary commercial M4. Published historical descriptions refer to special low-temperature lubrication and additional resistance to dust and dirt.

These differences are largely internal and cannot normally be verified from photographs alone. A black chrome M4 should not be identified as a KE-7A unless its serial number and contract markings correspond with the documented production.

Claims that an individual camera retains its original military lubrication or sealing should be treated cautiously after decades of servicing.

ELCAN 50mm f/2 Outfit

The KE-7A was normally paired with the ELCAN 50mm f/2, identified by lens numbers in the 276-xxxx format. The lens uses four separate optical elements in four groups and was designed by Ernst Leitz Canada for the military outfit.

Its simplified construction avoided cemented optical groups, supporting reliability across changing temperatures. The lens has a feet-only distance scale on military examples and was normally supplied with a dedicated screw-in hood.

The ELCAN lens should remain a separate lens entry. On camera listings, it should be stored as included_lens metadata rather than added to the camera name.

A KE-7A body without its original ELCAN remains a KE-7A, but complete and correctly matched outfits generally occupy a different collector category from body-only examples.

Military and Civilian Versions

The military and civilian KE-7A cameras share the same basic black chrome M4 construction and production batch.

Military examples carry the federal stock, contract and U.S. markings. Civilian-overrun examples normally carry only the conventional camera serial number and lack the military ownership information.

Both versions should remain combined on one main KE-7A page, with military_issue and civilian_overrun stored as exact-variant metadata. Their physical similarity and shared production batch make separate public pages unnecessary.

Dimensions and Weight

The body follows the Leica M4 dimensions of approximately 138 mm wide, 77 mm high and 36 mm deep.

A body-only weight of approximately 600 g is appropriate for the main specification. Published M4 figures vary slightly according to production period and whether the take-up spool, film or other small components are included.

The ELCAN 50mm f/2 adds approximately 175 g, placing a complete camera-and-lens outfit near 775 g before the hood, case and other accessories are included.

Serial Number Information

Regular KE-7A production occupies the Leica serial-number block 1294501 through 1295000.

Military and civilian-overrun cameras occur within this shared batch. The serial number should therefore be checked together with:

• Rear military markings
• Federal Stock Number
• Contract number
• U.S. ownership marking
• Original black chrome finish
• Period-correct ELCAN lens
• Documented military packaging or provenance

Re-engraved Leica M4 bodies and assembled replacement outfits are possible. The presence of a separately acquired ELCAN lens does not by itself authenticate a body.

Identification

A military KE-7A normally has:

• A black chrome Leica M4-style body
• Leica M bayonet mount
• Serial number within 1294501-1295000
• KE-7A designation
• FSN 6720-1654-7115
• Contract F42600-71-C-2429
• U.S. ownership marking
• 0.72× finder with 35mm, 50mm, 90mm and 135mm frames
• Self-timer
• Rewind crank
• Cold accessory shoe
• Cable flash connection

Civilian-overrun cameras lack the federal stock, contract and U.S. markings but remain genuine KE-7A production bodies when their serial and construction are correct.

Collector Notes

The KE-7A is one of the most recognisable military Leica M cameras. Originality, markings and outfit completeness have a major effect on collector value.

The rear engravings should be inspected for correct typography, placement and wear. Fresh or inconsistent engraving may indicate later alteration.

The body should also be checked for replaced top plates, refinishing, non-original controls and evidence of conversion from an ordinary M4. Service records are valuable because internal military preparation cannot be confirmed from external appearance.

Recommended listing metadata includes exact_variant, military_issue, civilian_overrun, federal_stock_number, contract_marking, ownership_marking, serial_number, included_lens, matching_lens, lens_serial, original_finish, military_packaging, case_included, documentation, shutter_condition, rangefinder_condition and provenance.
