KMZ Zorki 4K

Zorki 4K

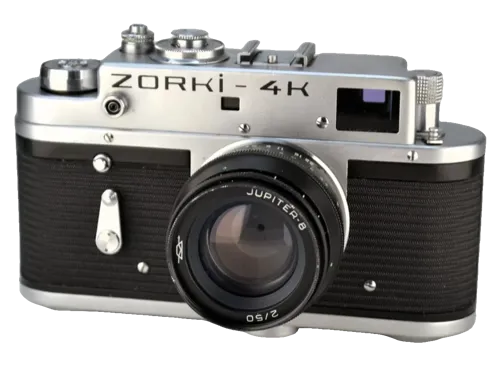

The KMZ Zorki 4K is a Soviet 35mm coupled-rangefinder camera introduced in 1972. It uses an M39 screw lens mount, a combined viewfinder and rangefinder, a cloth focal-plane shutter, a mechanical self-timer and selectable X or M flash synchronization.[1][3]

The camera is a lever-advance modernization of the Zorki 4. Its shutter, finder and general body construction remain closely related to the earlier model, but the large winding knob was replaced by a rapid film-advance lever and the film transport was redesigned.[1][3]

---

History

Development and Production

KMZ introduced the Zorki 4K in 1972. The factory archive describes it as a modernization of the Zorki 4 with a revised shutter-cocking and film-transport assembly operated by a lever.[1]

Regular production continued through 1978. KMZ’s production records also list 36 cameras completed in 1980, bringing the official total to 524,646 units.[2]

The Zorki 4 and Zorki 4K overlapped during 1972 and 1973. A camera with the traditional rotating advance knob is a Zorki 4, while a camera with the factory rapid-wind lever is a Zorki 4K.

Film Advance and Loading

The rapid-wind lever is the model’s main identifying feature. One full lever stroke advances the film, tensions the shutter and moves the frame counter.[3]

The Zorki 4K also introduced a revised take-up spool intended to simplify film loading. The removable rear and base shell remained similar to that of the Zorki 4.

The lever advance is a significant mechanical change and supports treating the Zorki 4K as a separate main model rather than a minor Zorki 4 variant.

Shutter

The shutter uses two horizontally travelling cloth curtains. Its marked sequence is B, 1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/125, 1/250, 1/500 and 1/1000 second.[3][4]

The shutter must be cocked before changing the selected speed. The speed selector should not be forced across the unmarked interval between 1/30 and 1 second.[3]

The slow-speed mechanism controls exposures from 1 second through 1/15 second. These settings are often affected by hardened lubricant on unrestored cameras.

The B setting keeps the shutter open while the release is held. The release can also be locked down for longer manually timed exposures.

Viewfinder and Rangefinder

The optical viewfinder and coupled rangefinder are combined in a single eyepiece. The finder has 1.15× magnification and can be adjusted by approximately ±2.5 dioptres.[3]

The fixed field is intended for a lens of approximately 50 mm. There are no projected framelines, selectable frames or automatic parallax correction.

Other focal lengths require an external accessory finder fitted to the cold shoe.

Flash Synchronization

The Zorki 4K has a front cable socket and selectable X or M synchronization. The accessory shoe has no electrical centre contact.[3][5]

X is intended for electronic flash, while M accommodates single-use flashbulbs with a delayed light output. The recommended full-aperture synchronization speed is 1/30 second.[3]

Flash operation should be tested separately from the shutter, as the mechanical shutter can function even when the electrical contact has failed.

Dimensions and Weight

Kamerastore lists practical body dimensions of approximately 141 mm wide, 89 mm high and 44 mm deep, with a weight of 580 g.[5]

The factory manual gives dimensions including the supplied lens. With an Industar-50, the camera is listed as 143 × 60 × 91 mm and 600 g. With a Jupiter-8, it is listed as 143 × 75 × 91 mm and 700 g.[3]

The 580 g Kamerastore figure is therefore used as the main body specification, while the factory values are useful for identifying complete camera-and-lens kits.

Lens Kits

The Zorki 4K was officially supplied with either an Industar-50 50 mm f/3.5 or Jupiter-8 50 mm f/2.[3]

The Jupiter-8 appears to have been the more common export configuration. The supplied lens should be stored as listing metadata rather than included in the camera name.

Combined Variants

Regular production includes Cyrillic-marked and Latin-letter export versions. Cyrillic examples are most strongly associated with earlier production, while later cameras are frequently marked Zorki-4K for export.[4]

A commemorative version carrying a “30 Years of Victory” emblem is documented. This should be stored as commemorative_edition metadata rather than given a separate main page.[4]

Differences in engraving, painted markings, coverings, control finishes and supplied lenses should also remain combined under the principal Zorki 4K entry.

KMZ additionally produced a military recording version without the normal finder, rangefinder and accessory shoe. Because its body and intended operation differ substantially, it should not be matched automatically to the normal consumer Zorki 4K.[1]

Serial Number Information

Regular serial numbers are normally year coded. The first two digits identify the production year, giving common prefixes from 72 through 78.

A prefix of 80 is historically possible because KMZ records 36 cameras in 1980, although surviving examples are extremely uncommon.[2]

Documented examples include serials 72255105, 74079765 and 76734883.[4] These are reference examples and not confirmed factory start or end numbers.

Identification

A standard Zorki 4K has:

• An M39 screw lens mount
• A combined viewfinder and rangefinder
• A rapid film-advance lever
• A mechanical self-timer
• A front flash cable socket
• X and M synchronization settings
• A removable rear and base shell
• No built-in exposure meter

The Zorki 4 uses a rotating advance knob instead of a lever. The Mir resembles the Zorki 4 family but lacks the 1/1000-second shutter setting.

For price tracking, useful metadata includes exact_variant, production_period, marking_language, engraving, commemorative_edition, export_version, finish, included_lens, lever_condition, self_timer_condition, flash_sync_condition, rangefinder_condition, slow_speed_condition, shutter_condition, accessories, case_included and body_only_or_kit.

---
