KMZ Zorki 3M

Zorki 3M

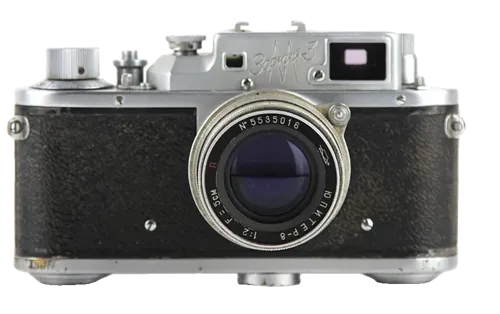

The KMZ Zorki 3M is a Soviet 35mm coupled-rangefinder camera produced from 1954 to 1956. It is the modernized successor to the original Zorki 3, retaining its cast body, removable rear section, combined viewfinder-rangefinder and extended shutter-speed range.[1][3]

Its defining improvement is the unified shutter-speed selector. The original Zorki 3 requires separate controls for fast and slow speeds, while the Zorki 3M places every marked speed from 1 second to 1/1000 second on a single top-mounted dial.[1][3]

The camera uses an M39 screw lens mount and a horizontal-travel cloth focal-plane shutter. It has no self-timer or factory-installed flash synchronization.

---

History

Development and Launch

The Zorki 3M was introduced in 1954 as a mechanical revision of the Zorki 3. The earlier camera offered an advanced combined finder and slow shutter speeds, but its two-selector shutter required a strict operating sequence and could be damaged when the controls were positioned incorrectly.[3][4]

KMZ redesigned the shutter so all speeds could be selected from one control. The factory’s historical account describes the mechanism as being substantially recreated rather than simply modified. This improved reliability and made the camera easier to operate.[3]

The original Cyrillic model name is Зоркий-3М. It may also appear as Zorki-3M or Zorkiy-3M in English-language listings.

Production

The Zorki 3M was produced from 1954 through 1956.[1]

KMZ’s surviving production records combine the Zorki 3 and Zorki 3M. The factory table lists 87,569 cameras for both models together, but does not provide a reliable breakdown for the Zorki 3M alone.[2]

This combined figure should not be treated as the standalone production total for the Zorki 3M. The two models also used overlapping factory numbering, making it difficult to reconstruct a separate continuous serial range.[4][5]

Shutter and Operation

The Zorki 3M uses a horizontal-travel shutter with rubberized cloth curtains. Its marked shutter-speed sequence is:

• B
• 1 second
• 1/2 second
• 1/5 second
• 1/10 second
• 1/25 second
• 1/50 second
• 1/100 second
• 1/250 second
• 1/500 second
• 1/1000 second

All speeds are selected using the single dial on the top plate.[4][5]

The shutter must be cocked before the selected speed is changed. The control is lifted, rotated to the required marking and lowered into position. It should not be forced directly across the unmarked interval between B and 1 second.[4]

The slow-speed mechanism operates at 1 second through 1/10 second. These settings commonly become inaccurate or stop working when the original lubricant hardens.

Unlike the original Zorki 3, the regular Zorki 3M does not have a separate Д time-exposure setting. Longer manually controlled exposures are made with B by holding the shutter release down.[4]

Viewfinder and Rangefinder

The optical viewfinder and coupled rangefinder are combined in one eyepiece. This allows the photographer to focus and compose without moving between separate oculars.[1][4]

The finder has approximately 1.15× magnification and a physical rangefinder base of about 38 mm. A lever beneath the rewind control provides diopter adjustment.[4]

The finder has no projected framelines. Its fixed field is intended approximately for a 50 mm lens. Wider and longer focal lengths require an external accessory finder fitted to the cold shoe.

There is no automatic parallax correction. At close focusing distances, the photographer must allow for the offset between the viewing and taking lenses.

Relationship to the Zorki 3

The Zorki 3 and Zorki 3M share a similar cast body, removable rear section, M39 mount, combined finder and maximum shutter speed of 1/1000 second.[1]

The main identification difference is the shutter control. The Zorki 3 has a second slow-speed selector on the front of the body. The Zorki 3M has no front speed dial because all shutter speeds are controlled from the top plate.

The shutter-release button on the Zorki 3M also projects farther above its surrounding collar than the release on the original Zorki 3.[5]

These differences affect both operation and servicing, supporting separate main pages for the two cameras.

Relationship to the Zorki 3S

The Zorki 3S was developed directly from the Zorki 3M. It retained the unified shutter-speed mechanism but added factory-installed flash synchronization.[1][3]

The synchronization equipment required a redesigned and taller upper housing. The Zorki 3S has a front flash terminal and adjustable ignition-delay control, while the regular Zorki 3M has neither.

A camera with one shutter-speed dial and no factory flash terminal is normally a Zorki 3M. A camera with the larger synchronized housing and front flash connection is normally a Zorki 3S.

Some Zorki 3M cameras may have received later flash modifications. These should remain identified as modified Zorki 3M bodies unless they have the complete factory construction of a Zorki 3S.

Dimensions and Weight

A measured Zorki 3M body without a lens weighs approximately 520 g.[4]

Published weights can differ depending on whether a Jupiter-8, take-up spool, film cassette or carrying case is included. The body-only configuration should therefore be preferred for the main weight specification.

The camera uses a removable combined rear and base section. Two rotating locks on the underside release the shell, providing direct access to the film chamber.

This arrangement is easier to load than the bottom-loading construction used by the earlier Zorki 1, Zorki 2 and synchronized derivatives.

Lens Kits

The Jupiter-8 50 mm f/2 is the standard lens most commonly associated with the Zorki 3M.[4][5]

The Jupiter-17 50 mm f/2 is also documented as a possible standard lens, although surviving examples are considerably less common.[4]

Other compatible M39 rangefinder lenses can be mounted without changing the camera’s identity. A Zorki 3M fitted with a Jupiter-3, Industar-22 or Industar-50 remains a Zorki 3M.

The included lens should be recorded as listing metadata because lens type, optical condition and originality can materially affect the sale price.

Combined Variants

The production differences within the Zorki 3M are relatively minor and should remain combined on one main page.[4][5]

Early cameras can have decorative raised rims around the front optical windows, four visible screws surrounding the accessory shoe and an arrow-shaped shutter-speed index.

Some early examples also have a folding balance foot attached to the tripod socket. Other cameras retain the same general construction but omit this support.

Later examples can use a black dot instead of an arrow as the shutter-speed index. Slow shutter-speed markings may be filled with red paint.

Export examples are documented with an additional “MADE IN USSR” inscription on the rear body section.

Most cameras have a matte chrome finish, although more highly polished examples are also known.[5]

These differences are suitable for metadata such as exact_variant, production_period, balance_foot, shutter_speed_index, marking_color, engraving, export_version and finish.

Serial Number Information

The Zorki 3 and Zorki 3M used overlapping or shared factory numbering. A reliable model-exclusive serial range cannot therefore be established.[2][4]

From the middle of the 1950s, KMZ generally used year-coded serial numbers in which the first two digits represented the production year. Cameras beginning with 55 or 56 normally correspond to 1955 or 1956 production.[1]

The 1954 transition is less straightforward because KMZ was moving from continuous numbering to yearly numbering. A number beginning with 54 should be assessed together with the camera’s physical production characteristics.

Collector-documented Zorki 3M examples include serial numbers 5503332, 5564090 and 5573884.[5] These are useful reference examples, not confirmed factory endpoints.

Identification

A standard Zorki 3M has:

• An M39 screw lens mount
• A combined viewfinder and rangefinder
• One rear eyepiece
• Diopter adjustment
• A single top-mounted shutter-speed selector
• A removable rear and base section
• Permanent strap lugs
• No front slow-speed dial
• No self-timer
• No factory flash terminal

The model name is normally marked as Зоркий-3М.

The original Zorki 3 has a separate slow-speed dial on the front. The Zorki 3S has a taller synchronized housing and front flash connection.

Collector Notes

The slow shutter speeds should be tested separately from the faster settings. A camera may operate normally from 1/25 through 1/1000 second while the slow-speed escapement remains seized or inaccurate.

The cloth shutter curtains should be checked for pinholes, cracking and uneven travel. The 1/1000-second setting may produce partial exposure if the curtain tension is incorrect.

Finder condition is also important. Common issues include haze, a weak rangefinder image, vertical misalignment and a seized diopter adjustment.

Removable rear sections, tripod fittings and shutter controls can be exchanged between cameras. Identification should therefore combine the serial number with several physical production characteristics.

For price tracking, useful metadata includes exact_variant, production_period, balance_foot, shutter_speed_index, marking_color, engraving, export_version, finish, included_lens, flash_modification, rangefinder_condition, slow_speed_condition, shutter_condition, accessories, case_included and body_only_or_kit.

---
