FED Zarya

FED Zarya

The FED Zarya is a Soviet 35mm interchangeable-lens viewfinder camera produced by the FED factory in Kharkiv, Ukraine, then part of the Soviet Union. Introduced in 1959, it was developed as a simplified and less expensive version of the FED-2 [1][2].

The camera uses a 39mm screw mount for interchangeable rangefinder lenses. The correct database mount value is M39, rather than LTM. Although the physical mount follows the Leica screw-mount concept, Soviet production tolerances and lens calibration can vary, especially when Soviet cameras and lenses are combined with Leica-standard equipment.

The Zarya is unusual because it accepts interchangeable M39 lenses but has no coupled rangefinder. Focusing is performed by estimating or measuring the subject distance and transferring that distance to the lens scale. An external accessory rangefinder can be fitted to the camera’s cold shoe when more precise focusing is required.

The built-in optical viewfinder is intended primarily for the standard 50mm lens. It has no projected framelines or rangefinder patch. Lenses with other focal lengths require an external accessory finder for accurate composition.

The shutter is a horizontal-travel cloth focal-plane design with speeds up to 1/500 second, plus Bulb. Depending on production version, cameras may use either the earlier 1/25 and 1/50 sequence or the later 1/30 and 1/60 sequence [1][3].

---

History

Development from the FED-2

The Zarya was introduced in 1959 as an economy derivative of the FED-2. The camera retained the FED-2 body, removable rear cover, M39 lens mount, cloth shutter and film-transport system, but removed the coupled rangefinder and mechanical self-timer [1][2].

Removing the rangefinder reduced manufacturing complexity and allowed FED to offer a lower-cost interchangeable-lens camera for the Soviet domestic market. The result was effectively a scale-focus or zone-focus version of the FED-2.

The name Zarya, written Заря in Cyrillic, translates as “dawn.” The model is also frequently transliterated as Zaria in European listings and collector references.

Production

Production ran from approximately 1959 to 1961. Collector references report total production of around 141,200 cameras, although published totals vary slightly between 141,228 and 141,288 [1][2][3].

Despite this substantial production figure, the Zarya is encountered less frequently outside former Soviet markets than comparable FED-2 and FED-3 cameras. It was primarily intended for domestic distribution and had a relatively short production period.

Production Variations

Several small production variations are known. Early examples can have a larger, more square viewfinder window measuring approximately 15 × 11 mm. Later cameras generally use a smaller window measuring approximately 15 × 9 mm [1].

Early examples may also differ in accessory-shoe construction, shutter-speed markings, film-memory dial details, body covering and the presence or style of the Zarya name engraving.

These differences should be recorded as variant metadata rather than separated into multiple main camera pages. Their basic mount, shutter, focusing method and body construction remain substantially the same.

Dimensions and Weight

A measured Zarya body is approximately:

• Width: 140 mm
• Height: 80 mm
• Depth: 32 mm
• Body-only weight: approximately 450 g

Published weights of approximately 562 to 569 g generally refer to a camera fitted with the standard Industar-26M lens. Larger figures around 900 g appear to represent a complete camera kit or a camera carried in its leather case rather than the body alone [1][4][5].

For database consistency, the body-only weight of 450 g and body dimensions of 140 × 80 × 32 mm are the most appropriate values.

Shutter Variations

The standard shutter-speed range consists of Bulb and five instantaneous speeds. Some examples are marked:

• 1/25 second
• 1/50 second
• 1/125 second
• 1/250 second
• 1/500 second

Other examples use the later sequence:

• 1/30 second
• 1/60 second
• 1/125 second
• 1/250 second
• 1/500 second

Flash synchronization follows the slowest instantaneous shutter speed, meaning either 1/25 second or 1/30 second, depending on the version.

The Zarya shutter-speed selector differs from many early FED and Zorki cameras in that collector reports indicate speeds can be selected with the shutter either cocked or released. Nevertheless, checking the operation of the actual camera before changing speeds is advisable.

Viewfinder and Focusing

The Zarya has a simple reverse Galilean optical viewfinder positioned close to the optical axis of the lens. It does not contain a rangefinder mechanism, focusing patch or selectable framelines.

The standard Industar-26M lens is focused using its engraved distance scale. In practical use, the photographer can estimate distance, use depth of field for zone focusing or attach a separate rangefinder to the accessory shoe.

When using a lens wider or longer than approximately 50mm, a matching external finder is required for reliable framing.

Lens Kits

The Zarya was normally supplied with an Industar-26M 50mm or 52mm f/2.8 lens. The lens is an M39 rangefinder lens and can be removed and replaced by other compatible FED, Zorki or Leica-type screw-mount lenses.

The supplied lens should be stored separately as listing or bundle metadata. A Zarya fitted with an Industar-61, Jupiter-8, Jupiter-12 or another M39 lens remains the same camera model.

Rangefinder coupling is irrelevant to the body because the Zarya has no rangefinder mechanism. However, correct flange distance and infinity calibration still matter for achieving accurate focus at the film plane.

Relationship to FED-2

The Zarya should be kept separate from the FED-2. Both cameras share the same broad body platform and removable-back construction, but the FED-2 has a long-base coupled rangefinder and combined viewfinder.

A practical identification rule is:

• FED-2, combined viewfinder and coupled rangefinder with two front windows
• Zarya, single central viewfinder window and no rangefinder mechanism

The Zarya also normally lacks the FED-2 self-timer.

Identification

The FED Zarya is identified by its:

• Заря or Zarya engraving
• M39 interchangeable lens mount

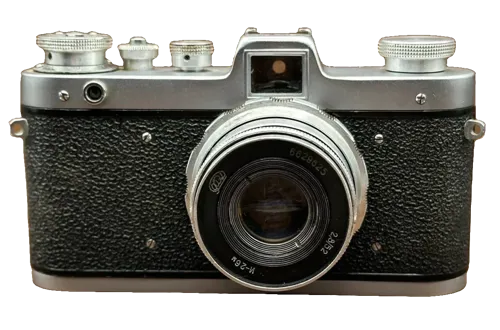

• Single central front viewfinder window
• Absence of a rangefinder window and coupling mechanism
• Absence of a self-timer
• Knob film advance
• Cloth focal-plane shutter
• Removable rear and bottom cover
• Cold accessory shoe
• Separate PC flash socket
• Shutter speeds up to 1/500 second

Common listing names include FED Zarya, FED Zaria, Zarya, Zaria, Заря, FED Zarya M39, Soviet viewfinder camera and FED-2 without rangefinder.

The camera was manufactured in Kharkiv, in present-day Ukraine. Describing it only as Russian is common in seller listings but geographically incomplete.

Collector Notes

The Zarya is an unusual collector camera because very few interchangeable-lens M39 cameras were produced without either a rangefinder or reflex focusing system. Its short production period, simplified FED-2 design and multiple minor production variations give it additional interest.

Collectors should check:

• Whether the rangefinder mechanism is correctly absent rather than removed from a FED-2
• The Zarya engraving and finder-window shape
• Cloth shutter-curtain condition
• Accuracy of the shutter speeds
• Flash synchronization
• Film transport and frame spacing
• Removable rear-cover fit
• M39 flange alignment
• Original Industar-26M lens
• Serial-number format and production variation

The FED Zarya should be treated as a separate M39 film camera because its interchangeable lens mount, scale-focus operation, single optical finder and simplified FED-2 construction distinguish it from both fixed-lens viewfinder cameras and coupled FED rangefinders.

---

Sources

• [1] Camera-wiki. Zarya. https://camera-wiki.org/wiki/Zarya
• [2] USSRPhoto. FED Zarya. https://ussrphoto.com/modern/Wiki/default.asp?ContentID=221&ParentID=1&WikiCatID=8
• [3] USSRPhoto. Zarya. https://ussrphoto.com/modern/Wiki/default.asp?ContentID=186
• [4] Fototechnika USSR. Фотоаппарат Заря обзор и инструкция. https://fotoussr.ru/cameras/zarya/
• [5] John’s Cameras. FED Zarya. https://oldcamera.blog/tag/fed/
• [6] Cámaras sin Fronteras. FED Zaria. https://www.camarassinfronteras.com/fed_zaria/fed_zaria.html
• [7] Collection Appareils. FED Zarya. https://collection-appareils.fr/x/html/appareil-10851-Fed_Zarya.html
