FED 3

FED-3

The FED-3 is a 35mm Soviet rangefinder camera produced by the FED factory in Kharkiv, Ukraine, then part of the Soviet Union. It belongs to the FED line of Leica-inspired screw-mount rangefinders and followed the earlier FED-2.

The camera uses a 39mm screw mount, commonly described as LTM or M39. For database purposes, the correct mount value is LTM. It accepts FED, Industar, Jupiter and other compatible Soviet M39 rangefinder lenses, as well as many Leica Thread Mount lenses.

Compatibility should still be described carefully. Soviet M39 rangefinder cameras use the same general screw-mount standard, but individual rangefinder calibration, lens cam shape and production tolerances can vary. Because of that, lens compatibility and accurate infinity focus should be checked on the actual camera and lens combination.

The FED-3 added slow shutter speeds to the FED-2 concept. The shutter is a horizontal-travel cloth focal-plane shutter with speeds from 1 second to 1/500 second, plus Bulb. Like many Soviet rangefinders, the shutter speed should normally be set only after the shutter has been cocked.

The camera has a combined viewfinder and rangefinder. This makes it easier to use than earlier separate-window Leica-style cameras, although the FED-3 rangefinder base was shortened compared with the FED-2 to make room for the slow-speed mechanism.

---

History

Development and Launch

The FED-3 was introduced in the early 1960s as the successor to the FED-2. It retained the Soviet M39 rangefinder lens mount but added slow shutter speeds, giving the camera a broader exposure range than the FED-2.

The model was produced for a long period, with most references placing production from around 1962 to 1980. This makes it one of the common later Soviet screw-mount rangefinders.

Relationship to FED-2

The FED-3 should be kept separate from the FED-2. The FED-2 has a longer rangefinder base and a simpler shutter-speed range without the same slow-speed mechanism. The FED-3 added slow speeds but shortened the rangefinder base to fit the additional mechanism.

A practical matching rule is: FED-2 equals longer-base earlier body. FED-3 equals later body with slow speeds from 1 second to 1/500 second.

FED-3a and FED-3b

The FED-3 exists in two main forms commonly called FED-3a and FED-3b.

The FED-3a is the earlier knob-wind version. It has a film advance knob and is often recognized by its taller, slightly humped top-plate shape.

The FED-3b is the later lever-wind version. It uses a film advance lever instead of the earlier advance knob and is the more common version seen in many later listings.

Both should usually be stored under the main FED-3 entry, with FED-3a and FED-3b as variants or aliases unless the database intentionally separates major body variants.

Lens Kits

The FED-3 is commonly found with Soviet normal lenses such as the Industar-26M 52mm f/2.8, Industar-61 52mm f/2.8 or Industar-61 L/D 55mm f/2.8. Some examples may also be found with Jupiter lenses.

Lens names should be treated as kit or listing metadata, not as part of the main camera model name.

Mount and Compatibility Notes

The FED-3 should be treated as LTM / M39 for camera classification, but with a caution that Soviet M39 rangefinder equipment may not always behave exactly like Leica-made LTM equipment. This is especially relevant for critical rangefinder focus and for lenses originally made for M39 SLR cameras, which use a different flange distance and should not be confused with M39 rangefinder lenses.

Do not classify the FED-3 as Leica M, Contax RF or fixed-lens. It is an interchangeable-lens screw-mount rangefinder.

Serial Number Notes

A complete reliable public factory serial-number range for the FED-3 is not easy to confirm. Soviet camera serial numbers often include date-code patterns, but interpretation varies by period and factory practice.

The safest database wording is Unknown, Soviet serial/date coding varies and no complete public factory range is reliably confirmed.

Identification

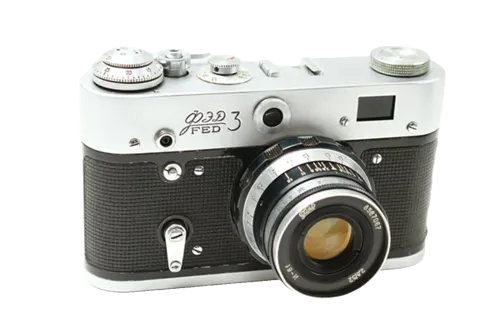

The FED-3 is identified by its FED or ФЭД-3 top-plate marking, M39 screw mount, combined viewfinder/rangefinder, cloth shutter, shutter-speed range down to 1 second, Soviet body construction and common Industar lens pairings.

Common listing names include FED-3, FED 3, FED-3a, FED-3b, ФЭД-3, FED 3 Soviet rangefinder, FED 3 M39 and FED 3 Leica copy. These should usually point to the same base camera entry.

Collector Notes

The FED-3 is collectible as a practical Soviet M39 rangefinder rather than as a rare luxury camera. It is common, affordable and historically interesting because it shows how the Leica-inspired FED line evolved into a more feature-complete camera with slow speeds and a combined finder.

Collectors and buyers should check the shutter curtains, slow-speed operation, rangefinder alignment, viewfinder clarity, film advance, rewind, lens mount condition, frame spacing, light leaks and whether the shutter speeds are changed only after cocking the shutter.

The FED-3 should be treated as a separate LTM film camera because its Soviet M39 mount, slow-speed shutter, combined finder and long production history distinguish it from the FED-2, FED-4, FED-5, Zorki bodies and German Leica screw-mount cameras.

---
