FED 1

FED-1

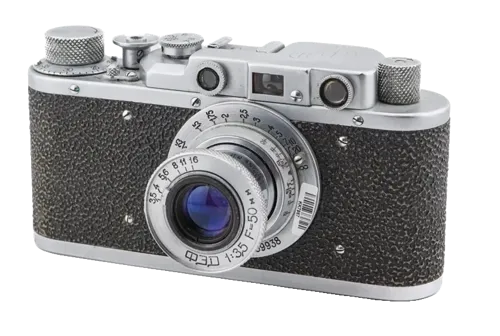

The FED-1 is a 35mm Soviet rangefinder camera produced by the FED factory in Kharkiv, Ukraine, then part of the Soviet Union. It was the first major FED camera and one of the most important Soviet Leica-inspired rangefinders.

The camera uses a 39mm screw mount for interchangeable rangefinder lenses. For this database, the correct mount value is M39, not LTM. Although the camera is Leica-inspired and physically close to Leica screw-mount practice, early FED production and Soviet calibration differences mean it should be separated from Leica-standard LTM entries.

The FED-1 is closely based on the Leica II concept. It has a compact bottom-loading body, separate viewfinder and rangefinder windows, a cloth focal-plane shutter and a 39mm screw lens mount. It does not have a built-in exposure meter, self-timer, hot shoe or flash synchronization.

The shutter is a horizontal-travel cloth focal-plane shutter with speeds from 1/20 second to 1/500 second, plus Z or Bulb depending on version and marking. Like many early Soviet rangefinders, the shutter-speed dial should normally be adjusted only after the shutter has been cocked.

The FED-1 is commonly found with collapsible FED 50mm f/3.5 lenses. These lenses are kit or listing metadata, not part of the camera’s main model name.

---

History

Development and Production

The FED-1 was introduced in 1934 and was produced over a long period before and after the Second World War. It was made by FED in Kharkiv and became the foundation of the later FED rangefinder line.

The camera was developed as a Soviet version of the Leica II concept. It gave Soviet photographers access to a compact 35mm rangefinder system with interchangeable lenses, at a time when Leica cameras represented one of the most advanced small-camera designs in the world.

FED Name

The name FED comes from Felix Edmundovich Dzerzhinsky. Early FED cameras are often associated with the Soviet industrial and political context of the 1930s, including production by the labor commune in Kharkiv.

Because of this background, early FED-1 cameras are important not only as Leica copies, but also as historical Soviet industrial objects.

Relationship to Leica II

The FED-1 should be kept separate from the Leica II Model D. The body layout, handling and lens mount concept are very close, but the FED-1 was made by FED in the Soviet Union and has its own production history, finish details, engravings, tolerances and collector categories.

A simple matching rule is: Leica II Model D equals Leica-made LTM camera. FED-1 equals Soviet M39 Leica-inspired camera.

Mount and Calibration Notes

The FED-1 uses a 39mm rangefinder screw mount, but it should be treated carefully. Camera-wiki notes that early FED Leica copies used a slightly different 39mm thread pitch, described as M39×1, because some early makers did not exactly reproduce the non-metric Leica thread specification.

For database consistency, this is why M39 is the better mount value for FED-1. It identifies the camera as a Soviet 39mm screw-mount rangefinder without implying perfect Leica-standard LTM calibration.

This does not mean Zenit M39 SLR mount. The FED-1 is a rangefinder M39 camera, not an M39 SLR camera.

Versions and Variants

The FED-1 exists in many collector-recognized versions. Early versions can include NKVD-related markings, different top-plate engravings, different body coverings, early lens combinations and wartime or postwar production changes.

Common version names include FED NKVD, FED-S, FED-1a, FED-1b, FED-1c, FED-1d, FED-1e, FED-1f and other collector classification names. These should usually be stored as variant metadata unless the database intentionally creates separate pages for every FED-1 variant.

Relationship to FED-2

The FED-1 should be kept separate from the FED-2. The FED-2 has a redesigned body with a longer rangefinder base, removable back and combined viewfinder/rangefinder in many versions. The FED-1 keeps the older Leica II-style separate finder and rangefinder layout.

A simple matching rule is: FED-1 equals Leica II-style body. FED-2 equals later redesigned FED body with longer rangefinder base.

Relationship to Zorki 1

The FED-1 should also be distinguished from the Zorki 1. The Zorki 1 was made by KMZ and followed the same basic Leica II / FED-style design. Both are Soviet M39 rangefinders, but the make and production history are different.

A seller listing that simply says “Russian Leica copy” should not automatically be matched to FED-1. Check the top-plate engraving for FED / ФЭД versus Zorki / Зоркий.

Identification

The FED-1 is identified by its compact Leica II-style body, FED or ФЭД top engraving, 39mm screw mount, separate viewfinder and rangefinder windows, bottom-loading construction, cloth focal-plane shutter and lack of slow-speed dial.

Common listing names include FED-1, FED 1, ФЭД, FED NKVD, FED-S, Soviet Leica copy, Russian Leica copy, FED Leica II copy and FED M39 rangefinder. These should point to the same main model unless a specific early variant is being tracked.

Collector Notes

The FED-1 is collectible because it is the first major Soviet Leica-inspired rangefinder and because it exists in many historically interesting variants. Early NKVD-marked cameras, unusual engravings, original lens kits and clean prewar examples are especially important to collectors.

Collectors should check shutter curtains, rangefinder alignment, viewfinder clarity, lens mount condition, shutter-speed dial, body engraving, bottom plate, take-up spool, lens matching and whether the camera is prewar, wartime or postwar.

Because many FED-1 cameras were heavily used, repaired or modified, condition and originality matter strongly. Lens compatibility should also be checked carefully if the camera will be used with non-Soviet screw-mount lenses.

The FED-1 should be treated as a separate M39 film camera because its Soviet 39mm screw mount, Leica II-inspired design, FED production history and calibration caveats distinguish it from Leica LTM cameras, Zorki bodies and later FED models.

---
