Chinaglia Kristall IIa

Kristall IIa

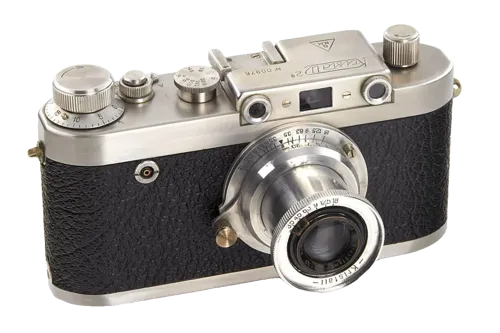

The Chinaglia Kristall IIa, usually engraved or catalogued as Kristall 2a, is an early Italian LTM coupled rangefinder introduced around 1950. Its Leica II-inspired layout combines separate viewing and rangefinder eyepieces, a focal-plane shutter from 1/20 to 1/1000 second plus B, and a Leica-compatible screw mount [1].

The model is especially associated with experimental use of stainless or nickel-plated steel bodywork. Sources differ over exact launch dating and construction sequences, so LeicaLensList should retain 1950 as the catalog year while explaining documented examples dated from roughly 1949 to 1952 [2][3].

History

Development and Launch

Domenico Chinaglia developed the Kristall family in northern Italy during the postwar demand for domestically made Leica-style cameras. Auction research identifies the 2a as his first camera, with surviving regular examples dated around 1951 and broader collector histories placing its introduction around 1949 to 1950 [1][2].

Production Evolution

Early and regular bodies show differences in metal, engraving and flash synchronization. The later Kristall 2s is mechanically similar but has a 1/500-second top speed, while the 3s adds slow timed speeds. Those models should remain separate profiles rather than production variants of the IIa [1].

Special Variants

A documented pre-series of ten heavy nickel-plated bodies bears the misspelled staibryte marking instead of staybrite. Some examples also carry a small circled K2 mark. The proposed connection between K2 and the 1954 Italian mountaineering achievement is unverified [3][4]. These details are variants within the Standard model profile, not proof of a factory special edition.

Collector Notes

Check whether a camera is the ordinary 2a, a Staibryte pre-series body or a later 2s. Confirm the separate finder windows, LTM mount, shutter scale, sync socket, body material, logo spelling and serial. Observed numbers including 887, 955, 976 and 01219 do not establish a continuous allocation. Lenses by Steinar, Optical-Vegar and other suppliers should be recorded as outfit details [2][3].
