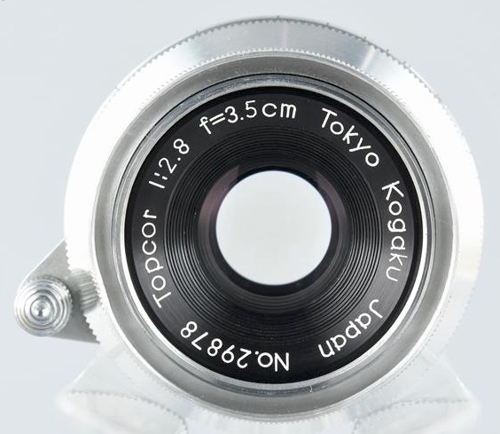

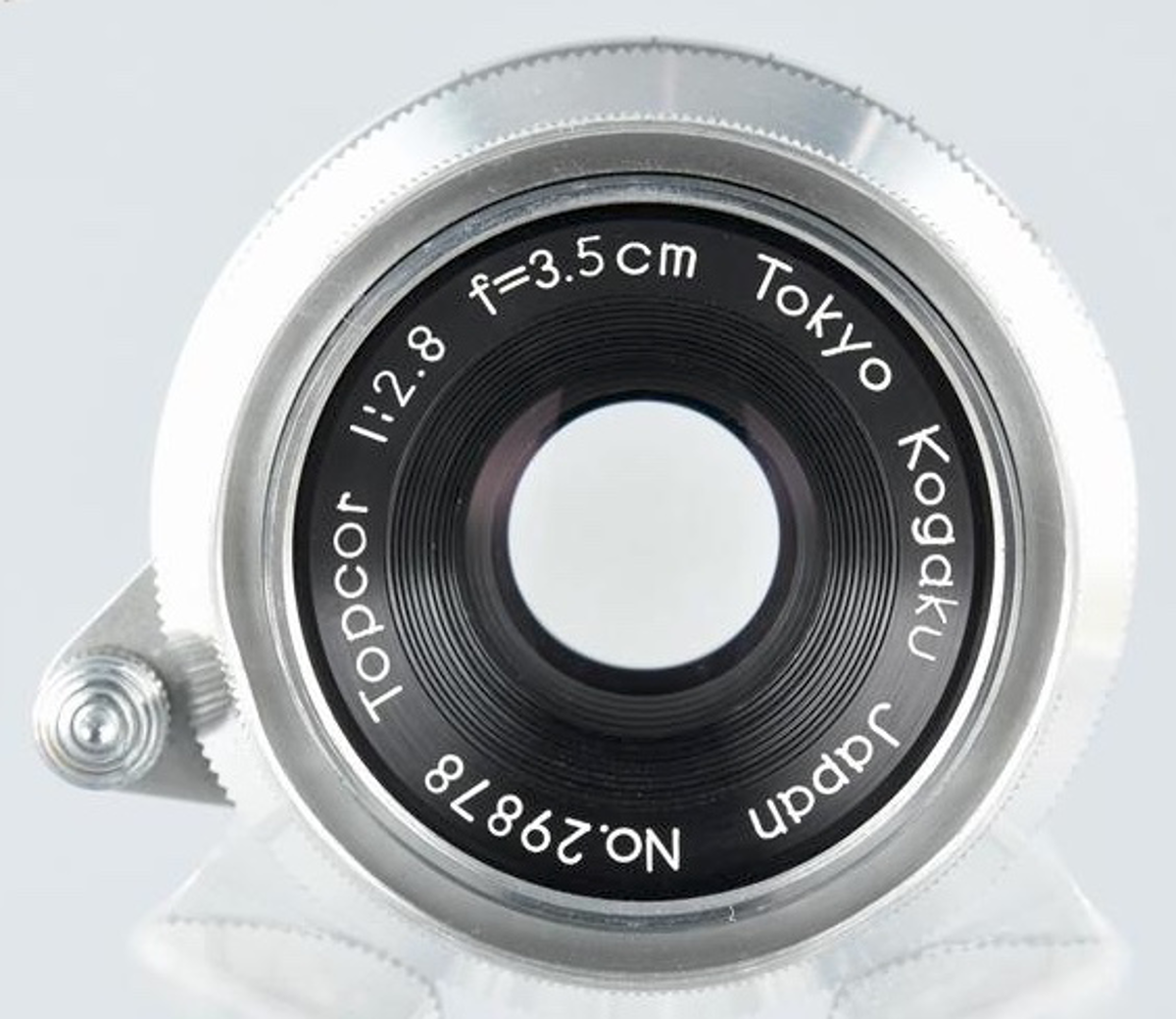

Tokyo Kogaku Topcor 35mm f/2.8

The Tokyo Kogaku Topcor 35mm f/2.8 is a LTM-mount lens for Leica rangefinder cameras. Leica price index ↗

Reference maintained by Thomas Boots

Focal Length: 35mm

Aperture: 𝑓/2.8

Release Year (from): 1955

Diameter: 49 mm

Length: 31 mm

Minimum Focus Distance: 1.07m

Elements in Groups: 6/4

Aperture Blades: 9

Mount: LTM

Colors: Chrome

Tokyo Kogaku Topcor 35mm f/2.8

Among the Leica screw-mount wide-angles made in 1950s Japan, the Topcor 35mm f/2.8 is one of the harder to find. It was produced by Tokyo Kogaku (Tokyo Optical Company), the maker of the Topcon cameras and, in the rangefinder era, lenses sold alongside the Leotax line of Japanese Leica-style bodies [1][3]. Tokyo Optical's screw-mount glass earned a strong reputation among the limited number of users who handled it, with the firm's Leica-thread lenses regarded as particularly capable for their period, though they were made in only modest numbers [3]. The 35mm f/2.8 is a chrome lens, compact in keeping with its short focal length, and was offered with a large accessory optical viewfinder because the camera bodies of the day framed the wider field of view only with an external finder [1].

Optically the lens uses a six-element design arranged in four groups, with a nine-blade diaphragm and a coated front, and it focuses to roughly a meter at its closest setting [2]. The barrel and controls are all-metal in the manner of the era, and the lens mounts via the 39mm Leica thread (LTM / M39), making it compatible with Leotax bodies and other screw-mount cameras as well as later M-mount cameras through an adapter. It takes 41mm filters. As recorded here the lens is not rangefinder coupled, so focusing relies on the scale or, on coupled bodies, on the body's own mechanism rather than a coupling cam in the lens.

Documented information on version differences is thin. Surviving examples are chrome and coated, and the lens is consistently described as rare, more often encountered in collector circles than in the hands of working photographers [1][3]. The matching 3.5cm brightline finder that completes a period-correct outfit is itself scarce and sought after [3].

Optical qualities

Rendering

Detailed, reliable testing of the screw-mount Topcor 35mm f/2.8 is scarce because so few examples circulate, so firm conclusions about its rendering are limited. The broader pattern reported for Tokyo Optical's Leica-thread lenses is that they were notably sharp for 1950s optics and reflected a high level of optical design skill, an impression consistent with the regard their normal lenses earned [3]. As a single-coated lens of the period it can be expected to show the lower contrast and the susceptibility to flare typical of early coatings, but specific, repeatable performance claims for this exact lens are not well established in published sources.

History

Development and Launch

Tokyo Kogaku built its rangefinder-mount lenses to accompany Japanese Leica-derivative cameras, principally the Leotax series, during the 1950s [3]. The screw-mount Topcor family ran through a progression of names that collectors trace from the early State and Simlar lenses to the Topcor and Topcor S designations [1]. Within this lineup the 35mm f/2.8 served as the wide-angle option, sold with a large external finder so the photographer could compose the wider frame [1].

Special editions

No major factory special variants of the screw-mount 35mm f/2.8 are widely documented; surviving examples are the chrome, coated version [1].

Collector Notes

This is a collector-grade lens that appears for sale only occasionally and at prices reflecting its scarcity [1][3]. Buyers should check the coating, since early coatings are soft and easily marked, and confirm the glass is free of haze and cleaning marks. The accompanying 3.5cm finder is a separate scarce item worth verifying if a complete period outfit is the goal [3]. One point of caution on attribution: some dealer listings describe the screw-mount 35mm f/2.8 as rangefinder coupled [2], whereas it is catalogued here as not coupled; published descriptions vary, so the coupling on a given example is worth confirming in person before purchase.
