Laowa 14mm f/4 FF RL Zero-D

The Laowa 14mm f/4 FF RL Zero-D is a M-mount lens for Leica rangefinder cameras. Leica price index ↗

Reference maintained by Thomas Boots

Focal Length: 14mm

Aperture: 𝑓/4

Release Year (from): 2020

Diameter: 58 mm

Length: 59 mm

Minimum Focus Distance: 0.27m

Elements in Groups: 13/9

Aperture Blades: 5

Mount: M

Material Weight: Metal, 228g

Colors: Black

Laowa.nl

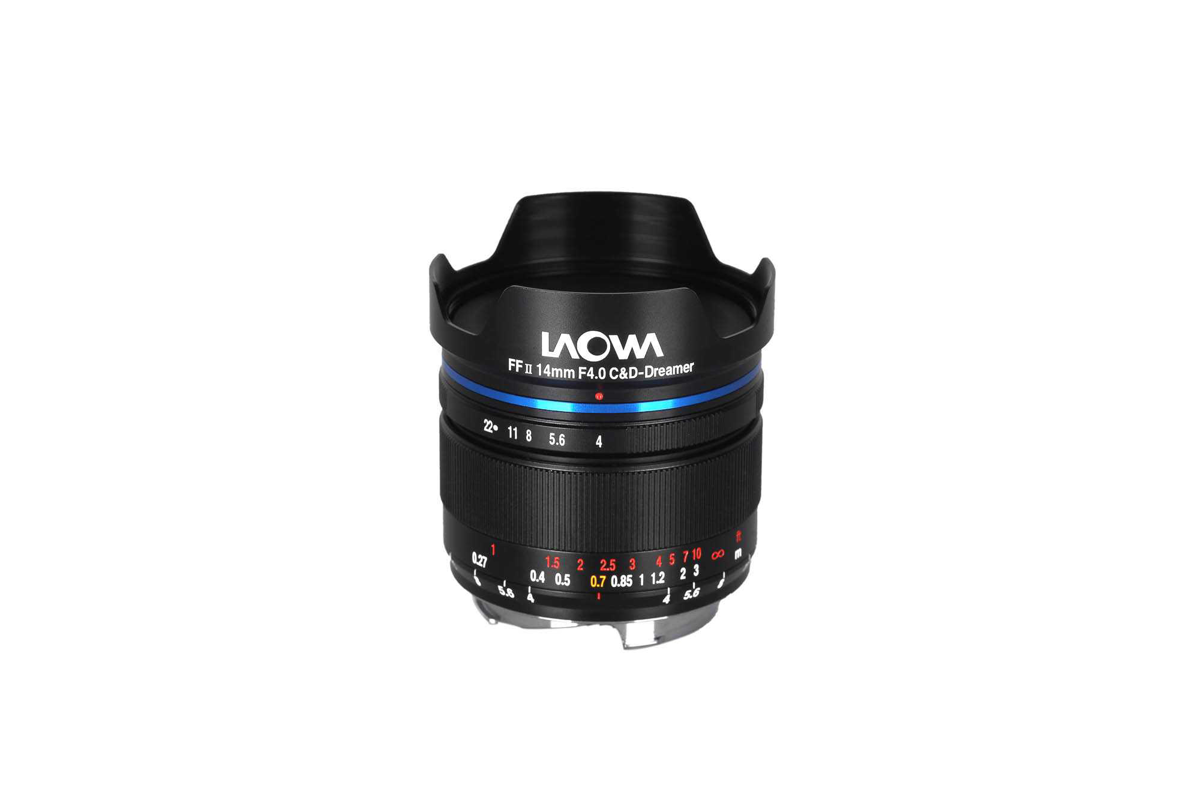

Laowa 14mm f/4 FF RL Zero-D

A native 14mm lens for the Leica M mount is unusual, and the Laowa 14mm f/4 FF RL Zero-D is one of the very few modern rectilinear ultra-wides built specifically with rangefinder coupling rather than offered only as a mirrorless or adapted optic. Announced by Venus Optics in September 2020, it arrived simultaneously in Leica M, Leica L, Canon RF, Sony FE and Nikon Z mounts, with the M version being the one fitted with a coupled rangefinder cam [1][2]. The "Zero-D" designation refers to Venus Optics' close-to-zero distortion design goal, and the company attributes the near-rectilinear rendering across the lens's 114-degree angle of view to two aspherical elements combined with three extra-low dispersion elements [1][2]. The "RL" in the name marks it as part of Laowa's rangefinder-style full-frame line.

Optically the lens uses a 13-element, 9-group formula, including the aspherical and extra-low dispersion glass noted above plus a high refractive index element, packed into a barrel of roughly 58 mm diameter and 59 mm length and weighing about 228 g [2][3]. Build is all-metal with engraved, paint-filled markings, and reviewers describe the construction as tight and durable [3]. Focusing is manual, with a minimum focus distance of 0.27 m. On the M mount the rangefinder is coupled only to about 0.7 m, with that limit marked on the distance scale; for closer work between the rangefinder limit and the 0.27 m minimum, live view or an electronic finder is recommended [2]. Because the 114-degree field exceeds the coverage of any Leica M optical viewfinder, an accessory finder or live view is needed for accurate framing in any case [2]. The front accepts 52 mm screw-in filters and the lens is compatible with an optional dedicated 100 mm filter holder; a five-blade diaphragm yields ten-point sunstars on point light sources, and a built-in petal hood shields the front element [2]. The lens does not carry Leica's six-bit coding.

The optic is sold as a current production item rather than in collector variants. At launch Venus Optics offered it in black and silver finishes, and the Leica M version was priced higher than the other mounts, reflecting the added rangefinder-coupling mechanism [1][2].

Optical qualities

Rendering The defining trait is the near-absence of rectilinear distortion across the wide field, which suits architecture and landscape work where straight lines must stay straight [1][2]. Independent testing of the optic found strong central sharpness with the expected falloff toward the extreme corners, and notable corner shading wide open that improves on stopping down, behavior typical of a compact ultra-wide of this design [3]. The five-blade aperture produces pronounced ten-point sunstars when stopped down [2].

Distortion and vignetting Distortion is held very low by design, the central point of the Zero-D concept, while vignetting is visible at f/4 and reduces as the lens is closed down [1][3].

History

Development and Launch Venus Optics introduced the 14mm f/4 FF RL Zero-D in September 2020 as a small, light rectilinear ultra-wide for full-frame cameras, positioned as a travel-friendly alternative to bulkier fast wides and ultra-wide zooms [2][3]. Unusually for the segment, it was engineered for several mounts at once, and the Leica M variant was given a coupled rangefinder so it could be focused through the camera's mechanism rather than by scale or live view alone [1][2].

Special editions No major factory special editions of the Leica M version are widely documented. The lens was offered in black and silver finishes at launch across its mount range [1].

Collector Notes This is a recent, in-production lens rather than a vintage rarity, so originality and haze concerns associated with older glass do not apply. Buyers should confirm they have the Leica M variant specifically, since the otherwise similar Sony FE, Nikon Z, Canon RF and Leica L versions are not rangefinder-coupled [2]. It is worth remembering that the rangefinder coupling works only to roughly 0.7 m even though the lens focuses to 0.27 m, and that the 114-degree field requires an accessory viewfinder or live view for accurate composition [2]. Original accessories to verify include the 52 mm filter thread compatibility and the front and rear caps supplied with the lens [2].
