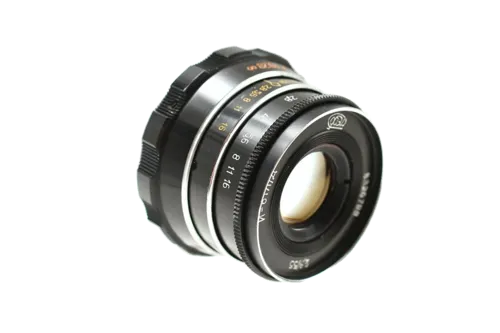

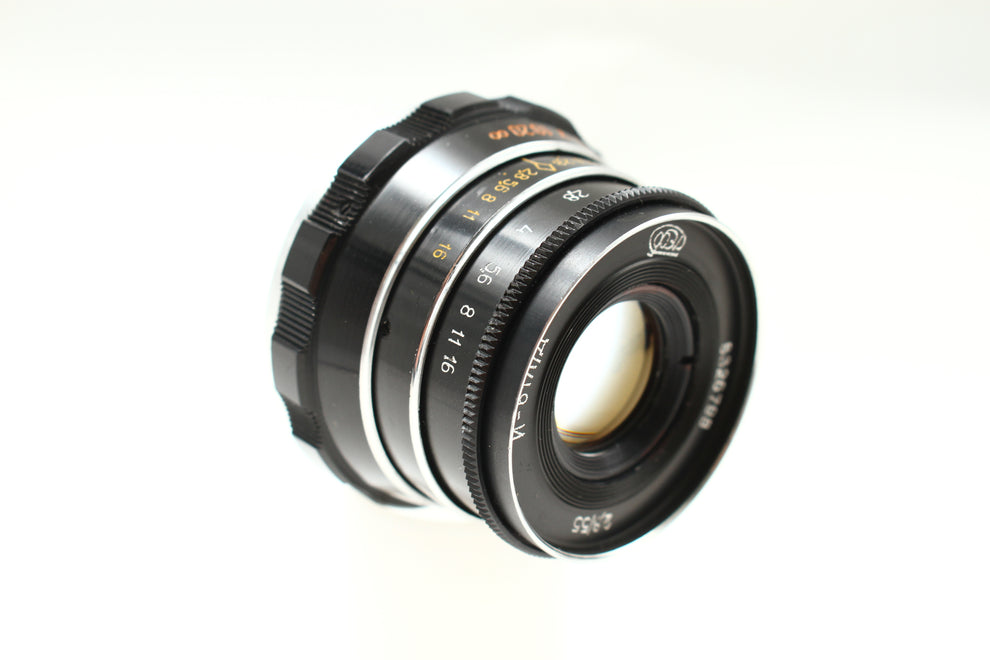

FED Industar-61 L/D 55mm f/2.8

FED Industar-61 L/D 55mm f/2.8 LTM

The FED Industar-61 L/D 55mm f/2.8 is a Soviet Leica-thread-mount normal lens for 35mm rangefinder cameras. It was commonly supplied with later FED rangefinder bodies and is one of the most widely encountered Soviet L39 lenses. The “L/D” marking stands for Lanthanum / Dalnomerny, meaning lanthanum glass and rangefinder-camera use. Lens references identify it as an M39 Leica screw-mount lens with a 4 element, 3 group Tessar-type optical formula [1].

The lens is marked and sold in several ways, including Industar-61 L/D, I-61 L/D, И-61 Л/Д, 2.8/55 and sometimes 2.8/53. Some Soviet references note that the exact optical focal length is approximately 52.42mm, although the normal collector and database name is 55mm f/2.8 when the lens is marked 2.8/55 [1] [4]. It has 6 aperture blades, a 40.5mm filter thread, 1m closest focusing distance and rangefinder coupling for Leica-thread-mount cameras [1] [2].

The Industar-61 L/D should not be merged with the Industar-61 L/Z, which is an SLR lens in M42 or SLR M39 mount. The “D” version is the rangefinder version, while the “Z” version is the SLR version. It should also be kept separate from earlier Soviet collapsible Industar lenses such as the FED 50mm f/3.5 / Industar-10 and from the Industar-26M, which it broadly replaced in later FED use [4] [5].

Optical qualities

Rendering

The Industar-61 L/D is a Tessar-type 4 element normal lens using lanthanum glass. Its rendering is generally described as relatively sharp for a Soviet rangefinder lens, with vintage contrast, modest speed and some sample variation. Casual Photophile notes that the lens performs well compared with many Soviet rangefinder lenses, especially when stopped down, but also emphasizes that it is not a Leica or Zeiss equivalent [6].

Sharpness

The lens has a strong reputation for sharpness among inexpensive Soviet L39 lenses. Casual Photophile describes it as one of the sharper Soviet rangefinder lenses and notes good fine-detail resolution beyond about f/5.6. Analog.Cafe also reports strong sharpness and contrast in use, but this should be read as user experience rather than laboratory testing [6] [7].

Contrast and color

The lens is usually single-coated, with blue or amber coating colors noted in user references. Contrast is better than many older uncoated Soviet lenses, but can vary widely depending on haze, coating damage and internal reflections. Ken Rockwell describes the lens as single-coated and notes relatively strong barrel distortion compared with Leica 50mm lenses [3].

Bokeh and transitions

The 6-blade diaphragm can produce angular stopped-down highlights. Wide open, the lens can give smoother rendering than expected for a simple f/2.8 Tessar-type lens, but strong subject separation is limited by the 55mm focal length, f/2.8 aperture and 1m minimum focus distance [6].

Digital use

The lens can be adapted to Leica M bodies with an L39-to-M adapter and to mirrorless digital cameras with suitable adapters. It is rangefinder-coupled, but infinity focus, focus accuracy and adapter fit should be checked on the exact copy. Soviet quality control varied, and many examples now suffer from stiff grease, dented filter rings, haze or misalignment [6].

History

Development and Launch

The Industar-61 L/D belongs to the later Soviet FED rangefinder period. AllPhotoLenses lists the first production year as 1971 for the Industar-61 L/D 55mm f/2.8 M39 rangefinder version [1]. Russian-language references describe it as a standard lens for FED rangefinder cameras and identify FED production in Kharkiv during the 1970s through the late Soviet period [4] [5].

Production Evolution

The lens appeared with different markings and minor barrel variations. References note examples marked 2.8/52, 2.8/53 and 2.8/55, while the exact optical focal length is often given as 52.42mm [1] [5]. Later examples commonly show black barrels with silver rings, colored distance and aperture markings, and the FED logo. Published dimensions and weights vary slightly between sources, so physical measurements should be checked against the exact copy when precision matters [1] [2] [3].

Special Editions/Variants

No commemorative factory special edition is widely documented. Collector-relevant variants are mainly marking and mount variants: the L/D rangefinder version in M39 / L39, the L/Z SLR version in M42 or SLR M39, and earlier or later barrel styles with different FED logos or focal-length engravings. Only the L/D rangefinder version belongs directly in LeicaLensList as a Leica-compatible L39 lens [4] [5].

Collector Notes

Collectors should verify that the lens is marked L/D or Л/Д and not L/Z or Л/З. The L/D version is the Leica-thread-mount rangefinder lens, while the L/Z version is the SLR lens and is not the correct match for Leica L39 use. Important checks include rangefinder coupling, infinity focus, aperture clicks, filter thread damage, oily blades, haze, fungus, coating marks and stiff focusing grease. Because the lens was mass-produced, condition matters more than rarity for most examples [6].

Special editions

No confirmed commemorative factory special edition is currently documented.

Known collector-relevant variants and related versions include:

• Industar-61 L/D 55mm f/2.8, FED rangefinder version in Leica L39 / LTM / M39, suitable for LeicaLensList.
• Industar-61 L/D examples marked 2.8/53 or 2.8/55, related marking variants of the rangefinder lens.
• Industar-61 L/Z, SLR version, usually M42 or SLR M39, not the same as the L/D rangefinder lens.
• Industar-61-A, adaptable SLR version, separate non-rangefinder lens.
• Earlier Industar-26M and FED 50mm f/3.5 / Industar-10 lenses, related Soviet normal lenses but separate database entries.

Sources

• [1] AllPhotoLenses. Industar-61 L/D 55 mm f/2.8 Lens. https://allphotolenses.com/lenses/item/c_666.html
• [2] Kamerastore. FED 55mm f2.8 Industar-61 L/D, LTM / M39. https://kamerastore.com/en-fi/products/fed-55mm-f2-8-industar-61-l-d-ltm-m39
• [3] Ken Rockwell. Industar 55mm f/2.8 N-61 L/D. https://www.kenrockwell.com/tech/industar/55mm-f28.htm
• [4] Radojuva. Industar-61 L/D 2.8/55 FED. https://radojuva.com/2016/03/industar-61-l-d-2-8-55-fed/
• [5] USSR Lens. Industar-61 L/D 2.8/55. https://ussrlens.com/optika/50-mm-full-time/industar-61-l-d-2-8-50
• [6] Casual Photophile. Industar 61 L/D 55mm F/2.8 Soviet Rangefinder Lens Review. https://casualphotophile.com/2018/07/30/industar-61-l-d-lens-review/
• [7] Analog.Cafe. FED 55mm f/2.8 Industar-61 L/D Lens Review. https://www.analog.cafe/r/fed-55mm-f28-industar-61-ld-lens-review-qhhn
