Voigtländer Heliar Classic 50mm f/1.5

Voigtländer Heliar Classic 50mm f/1.5

Unlike most modern fast fifties, this lens was engineered to be imperfect on purpose. Cosina built the Heliar Classic 50mm f/1.5 around a revival of the classic Heliar layout and tuned it to leave spherical and comatic aberration in the image at wide apertures, giving a soft, glowing, distinctly vintage look rather than clinical sharpness [1][2]. It was announced in August 2021 and released that September, and it sits in the Voigtländer line as a character lens aimed at photographers who want an analog, period rendering from a brand-new, mechanically modern optic [3][4].

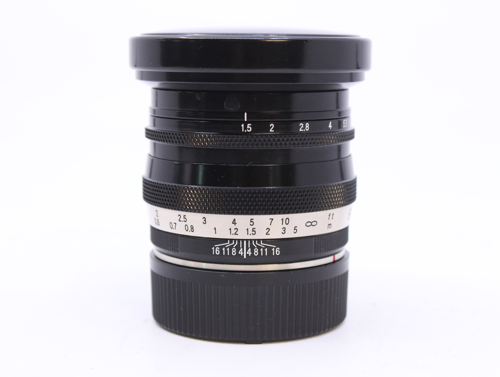

The optical design uses six elements in three groups and is described by the maker as an interpretation of the original Heliar type [1]. The lens is single coated, which contributes to its lower-contrast, flare-prone behavior in strong side or back light [2][5]. Build is all metal, with a focus ring carrying a diamond-pattern knurling and an aperture ring at the front of the barrel in the usual M arrangement; reviewers note the rangefinder coupling engages accurately and cleanly [5]. The aperture runs on ten blades, and the lens focuses down to 0.5 m, closer than the roughly 0.7 m at which the rangefinder mechanism itself remains coupled on most bodies, so the closest range is reached by scale or on a mirrorless adapter [3]. With a 49 mm filter thread and a weight near 255 g, it is compact and balances well on a film M or a digital M body.

The name links to the Heliar formula that Hans Harting devised for Voigtländer in 1900 as a modification of the Cooke triplet, a lineage the modern lens deliberately evokes rather than copies [6]. The lens should not be confused with the multi-coated, well-corrected Voigtländer Nokton 50mm f/1.5, which is a separate double-Gauss design with a very different look [2]. It is offered in black and silver finishes, and a documented commemorative variant exists in the I.C.S. 50th Anniversary release tied to Cosina's retailer network. Buyers comparing copies should be aware that the standard lens carries the S.C. (single coated) designation in its full name.

Optical qualities

Rendering The defining trait is a soft, low-contrast, glowing image at f/1.5 and f/2, produced by intentionally retained spherical and comatic aberration toward the edges of the frame [1][2]. The effect diminishes as the lens is stopped down, and by about f/4 the lens behaves largely as a conventional, distortion-neutral optic with acceptable sharpness [1][7]. The maker characterizes the overall look as picturesque and velvety, and several reviewers describe muted color and a vintage signature that is hard to reproduce in post-processing [1][2].

Contrast and color The single coating tends to lower contrast and yields slightly muted color, part of the intended classic character rather than a flaw [2][5].

Flare resistance Because of the single coating, the lens flares readily and can produce pronounced veiling and colored flare in back or strong side light, an effect users actively seek for a cinematic look [2][5].

Distortion and vignetting Users report visible barrel distortion, so the lens is not ideal for architectural work, alongside noticeable vignetting wide open [8].

Digital use On digital M bodies and via adapters the wide-open softness and aberrations are clearly visible, while stopped-down results are far more conventional; the lens is not six-bit coded, so it is not electronically identified by the camera [1][7].

History

Development and Launch Cosina announced the Heliar Classic 50mm f/1.5 in August 2021 and brought it to market in September 2021, positioning it as a deliberate counterpoint to today's high-correction lenses [3][4]. The design goal was to deliver a period rendering, using an interpretation of the Heliar type and a single coating to recreate the look of older fast lenses while retaining modern build quality and close focusing [1][3].

Special editions A commemorative I.C.S. 50th Anniversary version of the Heliar 50mm f/1.5 VM is documented in addition to the standard black and silver lenses. Beyond that anniversary release, no broad range of factory variants is widely documented for this lens.

Collector Notes The full model name includes the S.C. (single coated) designation, which distinguishes the rendering from multi-coated Voigtländer fifties and should be expected on genuine examples [2]. The lens is easily confused in listings with the separate Voigtländer Nokton 50mm f/1.5, a corrected double-Gauss design, so verify the Heliar Classic name and coating before buying [2]. Because the optical softness is by design, low contrast and flare are normal and not signs of haze; a metal lens cap and a lens hood are commonly supplied in the box, and these accessories are worth confirming on the used market [5].
