Voigtländer Heliar 50mm f/3.5 I

Voigtländer Heliar 50mm f/3.5 I

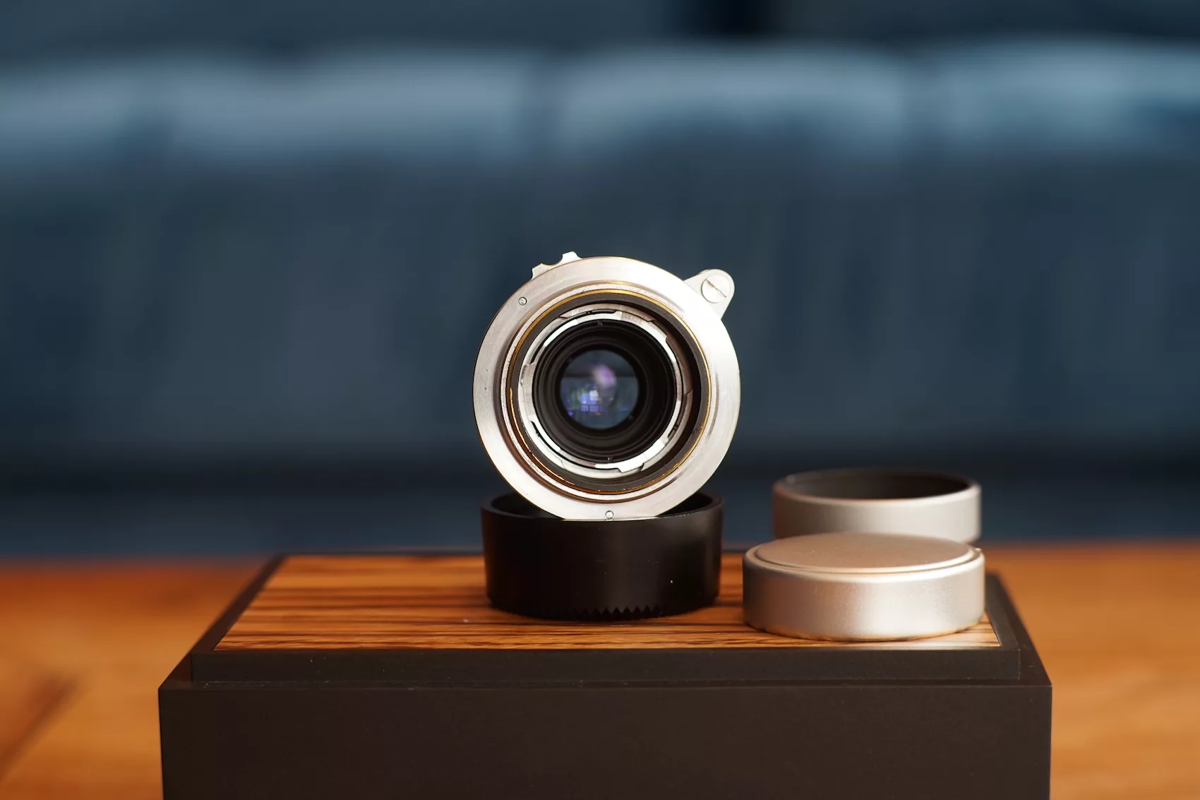

This compact silver normal lens revives the historic Heliar name for Leica thread-mount rangefinders, pairing a classic five-element optical layout with a collapsible all-metal barrel. It first reached buyers as the standard optic of the Voigtländer Bessa-T 101 Years anniversary set, a kit that Cosina-Voigtländer assembled to mark 101 years of the Heliar design, and the lens quickly built a reputation among rangefinder users out of proportion to its modest f/3.5 maximum aperture [1][2]. American magazine Popular Photography tested the 50mm Heliar in this period and reported results among the best it had measured, a verdict that has followed the lens through its later incarnations [1].

The Heliar 50mm f/3.5 uses a traditional Heliar arrangement of five elements in three groups, a formula descended from the lens type Voigtländer introduced around the turn of the twentieth century [2][3]. In this first LTM form it is a collapsible-tube design, so the barrel retracts into the camera body to make an already small lens even more pocketable [2]. The body is all metal with a high-precision finish, the diaphragm uses ten blades, and the lens couples to the rangefinder through the standard M39 screw mount, allowing it to be used directly on screw-mount bodies or on M cameras through a thread-to-bayonet adapter [1][2]. As a slow normal lens it is easy to focus precisely, since the depth of field at f/3.5 is forgiving on a rangefinder patch [1].

Several variants of the 50mm f/3.5 Heliar exist across the Cosina-Voigtländer range, including screw-mount and Nikon S-mount editions and, much later, a non-collapsible Leica M-mount Vintage Line version that shares the same optical design [1]. The screw-mount collapsible lens covered here is the early version most closely associated with the Bessa-T 101 Years release, and collectors generally distinguish it from the later rigid VM lens by its retracting barrel and screw thread [1][2].

Optical qualities

Rendering The 50mm Heliar is widely described as a high-resolution lens with neutral, accurate color and smooth tonal transitions, traits attributed to the classic Heliar formula and the lens's careful construction [1][3]. Reviewers note strong central sharpness and a generally clean, restrained look rather than a heavily characterful one, and the slow f/3.5 aperture keeps the rendering even across the frame [1][2].

Bokeh and transitions The ten-blade diaphragm produces a rounded aperture opening, which contributes to smooth out-of-focus areas and gentle highlight shapes [1][3].

History

Development and Launch Cosina-Voigtländer produced the 50mm f/3.5 Heliar to celebrate the longevity of the Heliar lens type, which dates to around 1900, and offered it as the lens of the Bessa-T 101 Years anniversary set [1][2]. The combination of an anniversary camera, a trigger winder, and the collapsible Heliar was presented as a collector-oriented package, and contemporary press coverage in 2002 singled out both the camera's finish and the lens's optical performance [1].

Production Evolution The same optical design has been carried across multiple mounts and barrel styles over the years, including screw-mount and Nikon S-mount versions and a later rigid Leica M-mount Vintage Line lens that uses identical glass but does not collapse [1]. The screw-mount collapsible lens is the earlier form in this lineage [1][2].

Collector Notes Buyers should confirm whether a given example is the collapsible screw-mount lens or one of the later mount and barrel variants, since the name and optical formula are shared across several editions [1][2]. Examples originally supplied with the Bessa-T 101 Years set are of particular interest to collectors, so completeness of the original kit and the condition of the metal finish are worth checking [1]. As with any small rangefinder optic, inspect the glass for haze and confirm smooth collapsing and focusing action before purchase.

Sources

• [1] CameraQuest. Voigtlander 50mm f/3.5 Heliar M. https://shop.cameraquest.com/voigtlander-leica-mount-lenses/voigtlander-50mm-f/3.5-heliar-m/
• [2] Leica Rumors. Voigtlander Heliar Vintage Line 50mm f/3.5 VM lens for Leica M mount review. https://leicarumors.com/2017/03/12/voigtlander-heliar-vintage-line-50mm-f3-5-vm-lens-review.aspx/
• [3] B&H Photo Video. Voigtlander Heliar 50mm f/3.5 Lens BA341A. https://www.bhphotovideo.com/c/product/1295105-REG/voigtlander_ba341a_heliar_50mm_f_3_5_lens.html
