Leica MD

Leica MD

The Leica MD is a 35mm M-mount film camera introduced by Ernst Leitz Wetzlar in the early 1960s as a specialized technical body. It belongs to Leica’s family of finderless M cameras, with no built-in viewfinder and no coupled rangefinder [1][2].

The camera uses the Leica M bayonet mount and accepts Leica M-mount lenses. Unlike a normal Leica M rangefinder, the MD was not designed primarily for handheld rangefinder focusing. It was intended for technical, scientific, microscope, copying and Visoflex applications where focusing was handled through external optical equipment [2][3].

The MD was based on the Leica M2 generation and followed the Leica M1. The M1 retained a built-in viewfinder but removed the coupled rangefinder. The MD went further by removing both the viewfinder and the rangefinder, leaving a very plain front plate with no finder windows [2][3].

Mechanically, the Leica MD uses a fully mechanical horizontal-travel cloth focal-plane shutter with speeds from 1 second to 1/1000 second, plus Bulb. Flash synchronization is listed at 1/50 second. The body has no internal light meter, no battery-dependent functions, no self-timer and no built-in viewing system [1][4].

The Leica MD keeps the traditional Leica M bottom-loading body design and M2-style controls. It has a manual frame counter, rewind knob, single-stroke advance lever, cold accessory shoe and M bayonet mount. The official body code is 10101, and published dimensions are 138 × 77 × 36 mm, with a listed weight of 595 g [1][4].

History

Development and Launch

The Leica MD was developed as a simplified technical version of the Leica M2. Photoethnography describes it as a specialized Leitz camera developed in 1963 for microscopes and other technical equipment, and as a simplified Leica M1, which itself was a simplified M2 [2].

Production Evolution

The MD was produced in relatively small numbers compared with standard Leica M rangefinders. Leica Wiki lists the model as MD, code 10101, with a production period of 1963–1966 and no built-in finder system [1][4].

CameraQuest’s serial-number table lists assigned MD blocks from 1102501 to 1160820, with assignment dates between 1964 and 1967. The blocks are non-contiguous and should not be treated as one uninterrupted production run [3].

Serial Number Notes

Known assigned blocks include 1102501–1103000, 1128001–1128400, 1136001–1136500, 1136501–1137000, 1141001–1142000, 1160201–1160769 and 1160770–1160820 [3].

Because these blocks are non-contiguous, a camera outside the visible start-to-end span should not automatically be identified as an MD. The body layout, absence of finder windows, M2-style controls and serial block should all be checked together.

Relationship to Leica M1

The Leica MD should be kept separate from the Leica M1. The Leica M1 has a built-in viewfinder but no coupled rangefinder. The MD has neither a built-in viewfinder nor a rangefinder. This makes the MD a more specialized technical body and visually much cleaner from the front [2].

Relationship to Leica MDa and MD-2

The Leica MD should also be distinguished from the later Leica MDa and Leica MD-2. The MD is the earlier M2-based finderless body. The MDa replaced the MD and was based on the M4 generation, while the MD-2 was a later continuation based on the M4-2 generation [5][6].

Identification

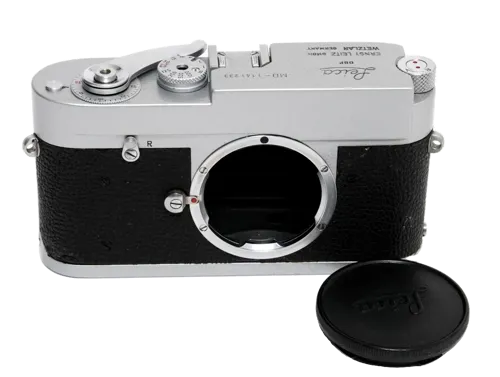

The Leica MD is identified by its plain front plate, absence of viewfinder and rangefinder windows, Leica M bayonet mount, M2-style rewind knob, M2-style manual frame counter, single-stroke film advance lever, cold accessory shoe and top-plate Leica script.

Many examples were used with microscopes, Visoflex reflex housings, Reprovit copying equipment, scientific instruments or technical recording setups. Some bodies may therefore show unusual base plates, adapters, back doors or evidence of laboratory use.

Collector Notes

The Leica MD is less common than standard Leica M rangefinders and is often misunderstood in seller listings. Common listing names include Leica MD, Leica MD Chrome, Leica MD no finder, Leica MD no rangefinder, Leica MD scientific body and Leica MD M-mount body.

It should not be confused with the digital Leica M-D Typ 262. The film MD is a 1960s mechanical M-mount body with no viewfinder or rangefinder, while the M-D Typ 262 is a modern digital M camera without a rear LCD screen.

Collectors should check shutter operation, film transport, the condition of the M mount, whether the original base plate is present, whether any scientific back or technical accessory has been added, and whether the serial number falls within a documented MD block.

The Leica MD should be treated as a separate M-mount film camera because it is not simply a Leica M2 variant. Its finderless construction, technical purpose and distinct serial-number blocks make it a clearly identifiable model.

Sources

• [1] Leica Wiki. MD. https://wiki.l-camera-forum.com/leica-wiki.en/index.php/MD
• [2] Photoethnography.com. Leica MD, doctors only please. https://www.photoethnography.com/ClassicCameras/LeicaMD.html
• [3] CameraQuest. Leica M’s Sorted by Model and Serial Number. https://cameraquest.com/mtype.htm
• [4] Leica Wiki. Main Page, M camera table. https://wiki.l-camera-forum.com/leica-wiki.en/index.php?title=Main_Page
• [5] Pacific Rim Camera. Leica MDa. https://www.pacificrimcamera.com/pp/leicamda.htm
• [6] Pacific Rim Camera. Leica MD-2. https://www.pacificrimcamera.com/pp/leicamd2.htm
