Canon 7S

Canon 7S

The Canon 7S, also written Canon 7s, is a 35mm Leica screw-mount rangefinder camera marketed by Canon Camera Co. in April 1965. It was introduced as the successor to the Canon 7 and became the final official model in Canon’s long line of luxury-class rangefinder cameras that began with the Hansa Canon [1].

The camera uses Canon’s threaded mount, compatible with the Leica Thread Mount, also known as LTM, M39 or Leica screw mount. It also includes Canon’s larger special bayonet mount with three inner lugs, intended for the Canon 50mm f/0.95 lens and Mirror Box 2 [1].

The Canon 7S retained the basic handling and rangefinder design of the earlier Canon 7, but replaced the selenium exposure meter with a more sensitive CdS meter. Canon also added an accessory shoe, correcting one of the most criticized omissions of the original Canon 7 [1][2].

The viewfinder is a coincidence rangefinder integrated with Canon’s universal mark finder. It provides manually switchable projected framelines for 35mm, 50mm, 85/100mm and 135mm lenses, with automatic parallax correction. Canon lists an effective rangefinder base line of 47.2 mm [1].

Mechanically, the Canon 7S uses a two-axis, horizontal-travel focal-plane shutter with metal curtains. The single non-rotating shutter-speed dial covers X, T, B, 1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/125, 1/250, 1/500 and 1/1000 second. The camera also includes a built-in self-timer and shutter-button lock [1].

History

Development and Launch

The Canon 7S was marketed in April 1965, at a time when Canon had already released several SLR cameras, including Canonflex R-series models, FL-mount cameras and the Pellix. Canon’s official museum notes that the future of the rangefinder market was already limited, but the 7S was still introduced as a refined successor to the Canon 7 [1].

Production Evolution

The 7S replaced the Canon 7 and remained closely related to it in body shape, mount design and shutter specification. The most important changes were the CdS exposure meter, added accessory shoe, repositioned tripod socket and improved handling details [1][2].

Collector sources generally describe the model as the last official Canon rangefinder, while the later 7sZ is usually treated as a collector-defined late variant rather than a separate official Canon model [2][3].

Serial Number Notes

Serial-number information should be handled carefully. Leica Copies Japan notes that Canon 7 production ran from the 800000 to 999000 range, after which the Canon 7S restarted with six-digit serial numbers beginning around 100000 and ending around 123001. The same source notes a transition period around 115000 to 118000 where late 7sZ-type feature combinations may appear [2].

Meter and Finder

The most visible difference from the Canon 7 is the CdS meter system. Canon lists two metering ranges at ISO 100: EV 12 to 19 and EV 6 to 13. The meter is switchable between high and low ranges, with aperture needle readings coupled to the shutter-speed dial [1].

The finder system remained one of the camera’s strengths. Unlike earlier variable-magnification Canon screw-mount bodies, the 7S uses projected framelines rather than a rotating magnification finder. The manually switchable framelines cover the main rangefinder focal lengths of the period, while the outer bayonet mount allowed use of Canon’s extreme 50mm f/0.95 lens [1][3].

Relationship to Canon 7

The Canon 7S should be stored separately from the Canon 7. The original Canon 7 used a selenium meter and had no built-in accessory shoe. The 7S changed to CdS metering, added the accessory shoe and refined the late rangefinder body design. Both cameras share the same general LTM and special f/0.95 bayonet compatibility, but they are distinct collector models [1][2].

Relationship to Canon 7sZ

The 7S should also be distinguished from the late Canon 7sZ. The 7sZ name is widely used by collectors, especially following Peter Dechert and CameraQuest, but it is not generally treated as a separate official Canon model name. It usually refers to late-production 7S examples with updated features such as a larger rewind crank and finder changes [2][3].

Identification

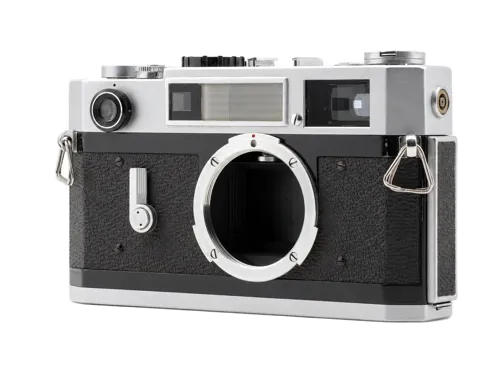

The Canon 7S is identified by its top-plate Canon 7s marking, CdS meter window, accessory shoe, LTM lens mount, special outer bayonet for the Canon 50mm f/0.95, self-timer, metal shutter, projected frameline selector and six-digit serial number beginning around 100000.

Seller titles may use names such as Canon 7S, Canon 7s, Canon 7S Rangefinder, Canon 7S L39, Canon 7S LTM, Leica Canon 7S or Canon 7S Leica Screw Mount. These should be treated as title variations for the same base camera unless the camera is specifically a late 7sZ-type example.

Collector Notes

The Canon 7S is one of the most desirable Canon screw-mount bodies because it combines a large projected-frame finder, built-in CdS metering, 1/1000 second metal shutter, lever advance, hinged back loading, self-timer and compatibility with both standard 39mm screw-mount lenses and the Canon 50mm f/0.95 bayonet lens.

Collectors should check the top-plate marking, meter window, accessory shoe, serial number, special outer bayonet, frameline selector and meter operation. Many examples have inactive or inaccurate CdS meters because of age, battery changes or internal deterioration, so meter condition should be treated separately from body identification.

The Canon 7S should be treated as a separate LTM camera entry because it is not simply a Canon 7 variant. Its CdS meter, accessory shoe and late-production identification features make it a distinct model.

Sources

• [1] Canon Camera Museum. 7S. https://global.canon/en/c-museum/product/film55.html
• [2] Leica Copies Japan. Canon Rangefinder Cameras. https://leica-copies-japan.com/Canon.html
• [3] CameraQuest. Canon 7sZ. https://cameraquest.com/canon7sz.htm
• [4] Photoethnography.com. Canon 7, Canon 7s and Canon 7sZ. https://photoethnography.com/ClassicCameras/Canon7.html
