Canon 7

Canon 7

The Canon 7, also known as the Canon Model 7, is a 35mm screw-mount rangefinder camera marketed by Canon Camera Co. in September 1961. It succeeded the Canon VI-series and was Canon’s first rangefinder camera with an Arabic numeral model designation [1].

The camera uses Canon’s threaded mount, compatible with the Leica Thread Mount, also known as LTM, M39 or Leica screw mount. It also includes Canon’s larger special bayonet mount with three inner lugs, designed for the Canon 50mm f/0.95 lens and Mirror Box 2 reflex housing [1].

The Canon 7 was introduced at a time when the market for high-quality 35mm cameras was shifting strongly toward SLR cameras. Canon had already marketed the Canonflex, but still saw demand for fast-handling rangefinder cameras, especially for reportage and available-light work [1].

The camera’s most visible new feature was its built-in selenium exposure meter. Earlier Canon rangefinders up to the VI-series did not have an integrated meter. The Canon 7 meter is coupled to the shutter-speed dial and uses high and low measuring ranges, with needle aperture reading [1].

The viewfinder is a coincidence rangefinder integrated with Canon’s universal mark finder. It provides manually switchable projected framelines for 35mm, 50mm, 85/100mm and 135mm lenses, with automatic parallax correction. Canon lists the effective rangefinder base line as 47.2 mm [1].

Mechanically, the Canon 7 uses a two-axis, horizontal-travel focal-plane shutter with metal curtains. The single non-rotating shutter-speed dial covers X, T, B, 1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/125, 1/250, 1/500 and 1/1000 second. Flash synchronization is available at 1/60 second [1].

History

Development and Launch

The Canon 7 was marketed in September 1961 and announced during the same period as the Canonet. Canon developed the ultra-fast Canon 50mm f/0.95 lens at the same time, using the special outer bayonet on the Canon 7 body to support the lens [1].

Production Evolution

The Canon 7 became Canon’s most successful rangefinder camera. Leica Copies Japan states that 137,250 Canon 7 cameras were made, making it far more common than the later Canon 7S and 7sZ variants [2].

Production ran from 1961 until the arrival of the Canon 7S in 1965. Photoethnography gives the Canon 7 manufacturing period as 1961.9–1965, with more than 100,000 units produced [3].

Serial Number Notes

Serial-number information should be handled carefully. Leica Copies Japan states that after the Canon P ended around 798000, the Canon 7 used the range from 800000 to 999000. The later Canon 7S restarted with six-digit serial numbers beginning around 100000 [2].

The safest database wording is 800000 to 999000, reported Canon 7 production range. A visible serial number in this range should still be checked against the body layout, selenium meter and top-plate Canon 7 marking.

Relationship to Canon P

The Canon 7 should be kept separate from the Canon P. The Canon P is a simpler screw-mount rangefinder with a 1.0x finder and fixed visible framelines for 35mm, 50mm and 100mm. The Canon 7 added a built-in selenium meter, manually switchable projected framelines, a larger body, metal shutter, special outer bayonet and a more ambitious late-rangefinder feature set [1][2].

Relationship to Canon 7S

The Canon 7 should also be kept separate from the Canon 7S. The Canon 7 uses a selenium meter and lacks a built-in accessory shoe. The Canon 7S replaced the selenium meter with a CdS meter and added an accessory shoe, while retaining the same general late Canon rangefinder body concept [4].

Special Bayonet and 50mm f/0.95 Lens

The special outer bayonet is one of the defining features of the Canon 7. Standard lenses use the normal 39mm screw mount, while the Canon 50mm f/0.95 uses the larger bayonet around the screw mount. This allowed Canon to offer one of the fastest production lenses of the period while keeping compatibility with ordinary screw-mount lenses [1][3].

Identification

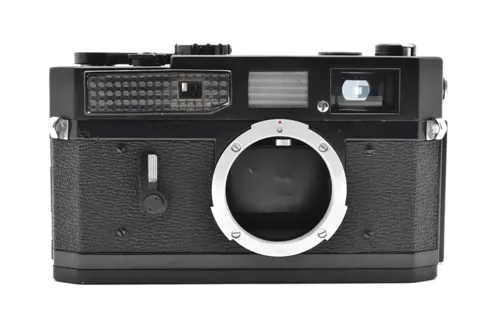

The Canon 7 is identified by its top-plate Canon 7 marking, selenium meter window above the lens mount, LTM screw mount, special outer bayonet, frameline selector, self-timer, metal shutter, hinged back and absence of a built-in accessory shoe.

Common listing names include Canon 7, Canon Model 7, Canon 7 Rangefinder, Canon 7 LTM, Canon 7 L39, Canon 7 with 50mm f/0.95 and Canon 7 Leica Screw Mount. Lens names in listing titles should be treated as kit or bundle information, not as part of the camera model name.

Collector Notes

The Canon 7 is one of the most important late screw-mount rangefinder cameras. It combines compatibility with 39mm screw-mount lenses, a metal 1/1000 second shutter, projected framelines, self-timer, built-in selenium meter and special bayonet support for the Canon 50mm f/0.95.

Collectors should check the selenium meter condition, shutter curtain condition, frameline selector, rangefinder alignment, special outer bayonet, self-timer, film transport, rewind crank and top-plate serial number. Many selenium meters are weak or inactive today, so meter function should be treated as a condition issue rather than an identification requirement.

The Canon 7 should be treated as a separate LTM camera entry because its built-in selenium meter, projected framelines, metal shutter and special f/0.95 bayonet support make it distinct from the Canon P, Canon VI-series and later Canon 7S.

Sources

• [1] Canon Camera Museum. 7. https://global.canon/en/c-museum/product/film42.html
• [2] Leica Copies Japan. Canon Rangefinder Cameras, Canon 7. https://leica-copies-japan.com/Canon.html
• [3] Photoethnography.com. Canon 7, Canon 7s and Canon 7sZ. https://photoethnography.com/ClassicCameras/Canon7.html
• [4] Canon Camera Museum. 7S. https://global.canon/en/c-museum/product/film55.html
• [5] Mike Eckman. Canon 7, 1961. https://mikeeckman.com/2021/02/canon-7-1961/
