Leica MD-2

Leica MD-2

The Leica MD-2 is a 35mm M-mount film camera produced by Leitz as a finderless technical body. It continued the line of blind Leica M cameras that began with the Leica MD and continued through the Leica MDa [1][2].

The camera uses the Leica M bayonet mount and accepts Leica M-mount lenses. It has no built-in viewfinder and no coupled rangefinder, so focusing and framing must be handled through external equipment, such as a Visoflex reflex housing, microscope adapter, copy stand, external accessory finder or scale-focus technique [2][3].

The MD-2 is based on the Leica M4-2 body platform. This gives it later M-series handling details compared with the earlier MD and MDa, including the M4-2-style film advance and compatibility with motorized or winder-based workflows associated with that generation [2][4].

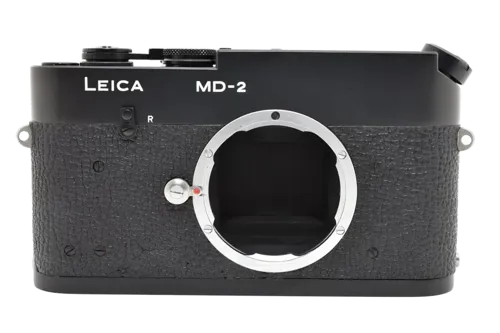

The front of the camera is deliberately plain, with no viewfinder window, no rangefinder window and no frame illumination window. This design was intended for technical, scientific, medical, copying and laboratory photography, where a normal rangefinder viewing system was unnecessary [2][3].

Mechanically, the MD-2 follows the traditional mechanical Leica M shutter concept. It uses a horizontal-travel cloth focal-plane shutter with speeds from 1 second to 1/1000 second, plus Bulb. Flash synchronization is generally treated as 1/50 second, in line with the mechanical M bodies of the period [3].

History

Development and Launch

The Leica MD-2 appeared around 1980 as the successor to the Leica MDa. Pacific Rim Camera describes it as a continuation of the MDa, based on the M4-2 body, without viewfinder or rangefinder, and designed for Visoflex reflex housing and technical uses [2].

The MD-2 arrived after the MDa had ended and during the period of the Canadian-built M4-2 and M4-P generation. It retained the finderless technical concept while moving the design onto the later M4-2-style body platform [1][2].

Production Evolution

Leica Wiki lists assigned MD-2 serial-number batches between 1980 and 1986, with a total of 1,800 assigned serial numbers [1]. This makes the MD-2 a relatively uncommon M-mount film body compared with ordinary production M cameras.

Pacific Rim Camera notes that the MD-2 was available only in black finish. This finish information should be treated as model-level identification, because the normal MD-2 production was not offered as a regular chrome version [2].

Serial Number Notes

Serial-number information should be handled carefully because the assigned MD-2 batches are non-contiguous. Leica Wiki lists the principal MD-2 blocks as 1545351–1546350, 1648751–1649250, 1664251–1664350 and 1704601–1704800 [1].

The broad visible span is therefore 1545351 to 1704800, but that does not mean all numbers between those endpoints are MD-2 cameras. Nearby serial numbers may belong to other Leica models, especially M4-2 and M4-P bodies. The safest wording is 1545351 to 1704800, non-contiguous assigned blocks.

Relationship to Leica MD

The Leica MD-2 should be kept separate from the original Leica MD. The MD was based on the M2 generation and used earlier body controls, while the MD-2 belongs to the later M4-2 generation. Both are finderless M bodies, but they represent different mechanical generations and production periods [2][3].

Relationship to Leica MDa

The MD-2 should also be distinguished from the Leica MDa. The MDa was based on the M4 body and was produced earlier. The MD-2 continued the same technical concept but was based on the M4-2 body, making it a later and separate model [2][4].

Identification

The Leica MD-2 is identified by its plain finderless front, absence of viewfinder and rangefinder windows, Leica M bayonet mount, black finish, M4-2-based body layout, top-plate Leica script, cold accessory shoe and lack of a self-timer.

Listings may describe the camera as Leica MD-2, Leica MD2, Leica MD 2, Leica MD-2 black, Leica M-D2, Leica blind body or Leica technical body. The digital Leica M-D Typ 262 should not be confused with the film MD-2.

Collector Notes

The Leica MD-2 is a specialized collector camera because it is one of the last finderless film M bodies. Its appeal comes from its low production, technical purpose, black-only finish and connection to microscope, Visoflex and laboratory photography.

Collectors should check shutter operation, film transport, cold shoe, M mount, base plate, signs of technical or medical use, and whether the serial number falls within a documented MD-2 block. Because many examples were used in institutional or scientific settings, condition can vary significantly.

The Leica MD-2 should be treated as a separate M-mount film camera because its M4-2-based finderless construction, black-only production and dedicated serial blocks distinguish it from both the earlier MD and the MDa.

Sources

• [1] Leica Wiki. MD-2. https://wiki.l-camera-forum.com/leica-wiki.en/index.php/MD-2
• [2] Pacific Rim Camera. Leica MD-2. https://www.pacificrimcamera.com/pp/leicamd2.htm
• [3] Photoethnography.com. Leica MD, doctors only please. https://www.photoethnography.com/ClassicCameras/LeicaMD.html
• [4] CameraQuest. Leica M's and SLRs from 1954 to 1999 Sorted by Date and Serial Number. https://cameraquest.com/leicanum.htm
• [5] Leica Boutique BC. Leica MD-2, Throwback Thursday. https://leicaboutiquebc.com/2019/10/leica-md-2-throwback-thursday/
