Leica M1

Leica M1

The Leica M1 is a 35mm M-mount film camera introduced by Ernst Leitz Wetzlar in 1959. It was developed as a simplified M-series body for technical, scientific and Visoflex use, rather than as a full rangefinder camera [1][2].

The camera uses the Leica M bayonet mount and accepts Leica M-mount lenses. It retains a built-in optical viewfinder, but it does not have a coupled rangefinder. Focusing therefore has to be done by scale focusing, through a Visoflex reflex housing, through microscope equipment or through another external focusing method [2][3].

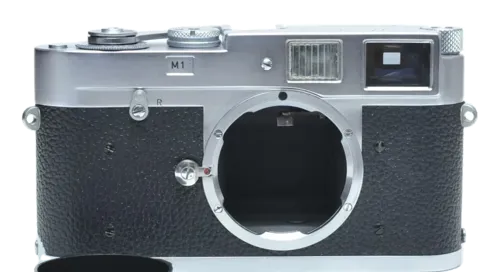

The M1 was based closely on the Leica M2 body concept. It has the same general M-series body shape, bottom-loading construction, manual frame counter and traditional mechanical shutter layout, but the rangefinder mechanism was omitted. The rangefinder window on the front is covered by a metal plate engraved with M1 [2][4].

The standard chrome Leica M1 viewfinder shows 35mm and 50mm framelines. These framelines are useful for simple scale-focus photography with wide and normal lenses, but the camera was primarily intended for applications where a rangefinder was not required [2][5].

Mechanically, the Leica M1 uses a horizontal-travel cloth focal-plane shutter with speeds from 1 second to 1/1000 second, plus Bulb. It has no built-in exposure meter, no battery-dependent functions and no self-timer. Flash synchronization is available at 1/50 second, following the general mechanical M-series shutter system of the period [4].

History

Development and Launch

The Leica M1 was introduced in 1959 as a simplified version of the Leica M2. It followed the M3 and M2 in Leica’s M-system chronology, but had a more specialized purpose. Instead of being aimed mainly at general photography, it was intended for Visoflex reflex work, microscope photography and technical documentation [1][2].

Production Evolution

Production ran from 1959 to 1964. Leica Wiki lists the production era as 1959–1964 with more than 9,650 cameras, while other collector references give slightly different totals depending on whether assigned serial blocks, delivered cameras or special variants are counted [1][4].

The camera was later followed by the Leica MD, which went further by removing both the rangefinder and the viewfinder. The M1 therefore sits between the Leica M2 and the later finderless MD technical bodies [2][3].

Serial Number Notes

Serial-number information should be handled carefully because Leica M1 production appears in non-contiguous blocks. CameraQuest lists M1 assigned blocks beginning at 950001 and ending at 1103000, with gaps between blocks and with small green-paint military batches listed separately [4].

Important assigned blocks include 950001–950300, 952016–952500, 956501–957000, 966501–967500, 979501–980500, later blocks through 1102801–1103000, and several small green-paint blocks such as 980451–980500, 1035926–1036000 and 1098101–1098183 [4].

The safest database wording is 950001 to 1103000, non-contiguous assigned blocks, including small green-paint military batches. The serial number should always be checked together with the body layout because nearby serial ranges also include M2 and M3 production.

Relationship to Leica M2

The Leica M1 should be kept separate from the Leica M2. The M2 is a full rangefinder camera with a coupled rangefinder, viewfinder frame selection and normal rangefinder focusing. The M1 has a viewfinder but no coupled rangefinder, no frameline preview lever and no self-timer [2][4].

The M1 could be used for normal photography with scale focusing, especially with wide-angle lenses stopped down, but it was not designed as a general-purpose M rangefinder in the same way as the M2.

Relationship to Leica MD

The Leica M1 should also be distinguished from the Leica MD. The M1 still has a built-in viewfinder with 35mm and 50mm framelines. The MD has no built-in viewfinder and no rangefinder, making it a more specialized blind technical body [2][3].

A small group of early M1-related bodies is known with top covers resembling the later MD, but these should be treated as special variants rather than the standard M1 specification [4].

Green-Paint Military Variants

Most Leica M1 cameras were chrome, but small green-paint military batches were produced. Leica Society International notes that standard chrome M1 cameras usually have 35mm and 50mm framelines, while rare olive-painted military examples may show different frameline arrangements, including 50mm and 135mm frames [5].

These military cameras should be treated as variants. Finish and military ownership markings should not be added to the main model name unless the database intentionally separates military versions as individual variant pages.

Identification

The Leica M1 is identified by its M-mount body, M2-style construction, covered rangefinder window with M1 engraving, built-in viewfinder, lack of coupled rangefinder, absence of self-timer and absence of frameline preview lever.

Common listing names include Leica M1, Leica M1 Chrome, Leica M1 body, Leica M1 Visoflex body, Leica M1 scientific camera and Leica M1 olive. Finish, military markings and technical accessories should be treated as variant or listing metadata.

Collector Notes

The Leica M1 is less common than the major M-series rangefinders and is often overlooked because it lacks rangefinder focusing. Its collector interest comes from its technical purpose, M2-based construction, unusual covered rangefinder window and relationship to the later MD, MDa and MD-2 bodies.

Collectors should check the covered rangefinder window, framelines, shutter operation, film transport, rangefinder absence, serial number block, body finish, base plate and whether any scientific or Visoflex accessories were originally supplied with the camera.

The Leica M1 should be treated as a separate M-mount film camera because its viewfinder-only construction, technical role and assigned serial-number blocks distinguish it from both the Leica M2 and the later finderless MD models.
