Canon VT

Canon VT

The Canon VT is a 35mm Leica screw-mount rangefinder camera introduced by Canon in 1956. It marked the beginning of Canon’s V-series rangefinder generation and was one of the company’s most important departures from the earlier bottom-loading Leica-style Canon bodies [1][2].

The camera uses a threaded lens mount, compatible with Leica Thread Mount lenses, also known as LTM or M39. It accepts Canon screw-mount rangefinder lenses as well as other compatible 39mm screw-mount lenses [1].

The Canon VT introduced several major handling changes. It was Canon’s first rangefinder camera with a swing-open back for film loading, replacing the bottom-loading system used on earlier Canon rangefinders. It also introduced a bottom-mounted trigger wind, giving the camera its VT name, where the “T” stands for Trigger [1].

The viewfinder uses a rotating three-mode system. Canon’s official specifications list 0.4x magnification for 35mm, 0.72x for 50mm and 1.4x at the RF setting. The RF setting was intended for more precise focusing and for use with accessory shoe finders, which could use the parallax correction pin on the accessory shoe [1].

The shutter is a two-axis horizontal-travel focal-plane shutter with cloth curtains. Speeds are split between the front slow-speed dial and the top main dial, with speeds from 1 second to 1/1000 second, plus T, B and X. Flash synchronization includes FP, M-F and X-sync, with electronic flash synchronization at 1/50 second [1].

---

History

Development and Launch

The Canon VT was marketed in August 1956. Canon described it as the successor to the IV-series, but it was much more than a simple update. It brought a new body concept, a new loading system, trigger wind, self-timer and a redesigned viewfinder system [1].

The camera was Canon’s response to a changing 1950s rangefinder market. Leica had introduced the M3 in 1954, and Canon needed a more modern body concept than the earlier IV-series screw-mount cameras. The VT kept the Leica screw mount but changed the handling experience significantly [2][3].

Trigger Wind Design

The Canon VT is best known for its bottom trigger wind. Earlier Canon rangefinders used knob wind, while later Canon V-series models also appeared with top lever wind. The VT took a different approach by integrating a rapid trigger advance into the base of the camera [1][2].

This design made film advance faster, but it also changed the bottom layout. Japanese Leica Copies notes that the tripod socket was moved to the right side when viewed from the front so that the accessory pistol grip could be fitted. Because of this layout, the VT did not use Canon’s previous magazine key arrangement in the same way as earlier bottom-loading models [2].

Swing-Open Back

The VT was the first Canon rangefinder with a swing-open camera back. Canon’s official museum text emphasizes that, for twenty years since the Hansa Canon, film loading had been through the bottom of the camera. The VT changed this by allowing film to be loaded through an opening rear back [1].

This made loading easier and placed the VT closer to later practical 35mm camera handling, even though it retained the traditional screw lens mount.

Viewfinder System

The Canon VT viewfinder is a key part of its identity. Instead of projected bright-line framelines, it uses a rotating viewfinder system with different magnifications. The 35mm setting gives a wider field, the 50mm setting is for normal lens use, and the RF setting increases magnification for more accurate focusing [1].

This system should not be confused with the later Canon VI-series projected frameline finder. The VT does not have the same bright-line frame system as the Canon VI-T or VI-L.

Serial Number Notes

Japanese Leica Copies gives the reported Peter Dechert production range as 500010 to 540000, with found examples around 50011x to 51814x [2].

The safest database wording is 500010 to 540000, reported Peter Dechert range, with found examples around 50011x to 51814x. Canon V-series serial numbering can overlap with nearby models, so identification should always be checked against visible body features and model engraving.

Relationship to Canon VT de luxe

The Canon VT should be kept separate from the Canon VT de luxe. The VT de luxe followed in 1957 and added detail changes, including an improved rewind crank and safety latch arrangement. The basic trigger-wind concept is shared, but the VT and VT de luxe have separate model identities and serial-number treatment [2][4].

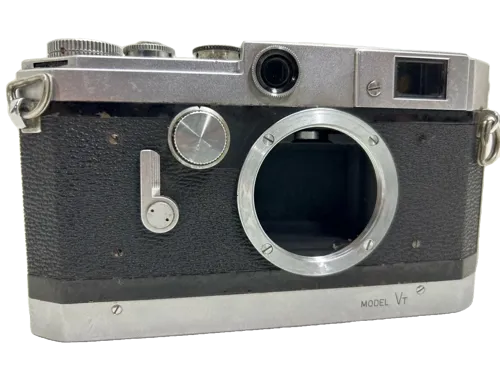

The standard VT is identified by MODEL VT engraving on the front face of the base plate. The VT de luxe is marked MODEL VT de luxe [2].

Relationship to Canon L2 and L1

The Canon VT also sits at the start of the V-series body family that included the L2 and L1. The L-series cameras used top lever wind rather than bottom trigger wind. The L2 also omitted the VT’s 1/1000-second top speed, self-timer and X-sync features, making the VT the more advanced model despite the less conventional trigger wind [2].

Identification

The Canon VT is identified by its LTM screw mount, swing-open back, bottom trigger wind, front slow-speed dial, top fast-speed dial to 1/1000 second, built-in self-timer, pop-up rewind knob, three-mode rotating viewfinder and MODEL VT engraving on the base plate front.

Common listing names include Canon VT, Canon V-T, Canon Model VT, Canon Model V, Canon VT LTM, Canon VT rangefinder and Canon VT trigger wind. Early “Canon Model V” wording should be treated as documentation or seller alias unless the camera is a pre-production example.

Collector Notes

The Canon VT is important because it was Canon’s first major attempt to move beyond the earlier Leica-copy layout while still keeping the LTM lens mount. Its swing-open back, bottom trigger wind, self-timer and advanced viewfinder make it one of the most distinctive Canon screw-mount rangefinders.

Collectors should check the trigger wind, self-timer, viewfinder rotation, rangefinder alignment, shutter curtains, flash sync switch, side bayonet flash terminal, base plate engraving, pop-up rewind knob, film transport and whether the body is actually a VT rather than a VT de luxe.

The Canon VT should be treated as a separate LTM film camera because its trigger-wind body, swing-open back, 1956 production identity and VT-specific engraving distinguish it from the earlier IV-series cameras and the later VT de luxe, L2 and L1.

---

Sources

• [1] Canon Camera Museum. VT. https://global.canon/en/c-museum/product/film28.html
• [2] Japanese Leica Copies. Canon Rangefinder Cameras, Canon VT. https://leica-copies-japan.com/Canon.html
• [3] CameraQuest. Canon VT. https://cameraquest.com/crfvt.htm
• [4] Canon Camera Museum. VT Deluxe. https://global.canon/en/c-museum/product/film30.html
• [5] FlynnGraphics. Canon VT Camera. https://flynngraphics.ca/the-collection/the-cameras/rangefinder/vt-camera/
