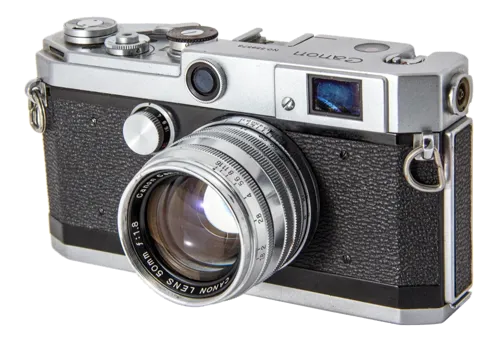

The Canon L1 is a 35mm Leica screw-mount rangefinder camera introduced by Canon in 1957. It belongs to Canon’s late screw-mount rangefinder generation and sits between the trigger-wind Canon VT family and the later Canon VL and VI-series models.

The camera uses a threaded lens mount, compatible with Leica Thread Mount lenses, also known as LTM or M39. It accepts Canon screw-mount rangefinder lenses and other compatible 39mm screw-mount lenses.

The Canon L1 was marketed at the same time as the Canon VT de luxe. Instead of the VT’s bottom trigger wind, the L1 uses a conventional film advance lever on the top plate. Canon also omitted the self-timer, giving the camera a cleaner external layout.

The viewfinder uses Canon’s rotating three-mode system. It provides settings for 35mm, 50mm and a magnified RF position for more precise focusing. The accessory shoe includes a parallax correction pin that can adjust compatible accessory finders as the lens is focused.

The shutter uses Canon’s two-dial speed layout, with slow speeds on the front dial and faster speeds on the top dial. Speeds run from 1 second to 1/1000 second, plus T, B and X. Flash synchronization is selectable for FP, M-F and X-sync, with electronic flash synchronization at approximately 1/50 second.

---

History

Development and Launch

The Canon L1 was marketed in May 1957. Canon’s official museum notes that it was introduced at the same time as the VT de luxe and replaced the bottom trigger wind with a camera-top advance lever. The self-timer was omitted, which gave the body a cleaner and less protruding design.

The L1 was also historically important for Canon because, together with the Canon 8T cine camera, it was among the first Canon cameras to receive Japan’s newly instituted Good Design Award.

Design and Handling

The L1 can be understood as a top-lever-wind alternative to the VT concept. CameraQuest describes it as basically a VT with lever advance instead of bottom trigger advance, lever rewind instead of knob rewind, and no self-timer.

This makes the L1 more conventional to operate than the VT. The film advance lever is placed on the top plate, while the rewind crank folds neatly into the top plate when not in use. This folding rewind crank is one of the most distinctive details of the model.

Shutter Curtain Notes

Canon’s official museum page notes that early L1 cameras used a cloth shutter curtain, while later production cameras replaced this with a thin stainless-steel curtain for improved durability and better resistance to pinhole burns caused by sunlight entering through the lens.

Because of this production change, surviving L1 cameras may be encountered with either cloth or metal shutter curtains. For a single database field, the safest wording is Cloth, later production with metal stainless-steel curtains.

Viewfinder System

The Canon L1 uses a three-position rotating finder rather than the later projected bright-line finder system used on cameras such as the Canon VI-L and Canon P. The 35mm setting gives a wider field, the 50mm setting is used for normal lens framing, and the RF setting increases magnification for focusing accuracy.

The L1 finder does not show the fixed multiple framelines of the Canon P. It belongs to the earlier Canon rotating-finder tradition, inherited from the VT generation.

Serial Number Notes

Japanese Leica Copies gives the reported Peter Dechert production range as 540000 to 566000, with found examples around 54206x to 56328x.

The safest database wording is 540000 to 566000, reported Peter Dechert range, with found examples around 54206x to 56328x. Canon V and L-series serial numbering can be confusing because parts and features sometimes overlap between late L1, early VL and other special-production bodies.

Relationship to Canon VT

The Canon L1 should be kept separate from the Canon VT. Both cameras share the late V-series body concept and two-dial shutter layout, but the VT has bottom trigger wind and a self-timer, while the L1 uses top lever advance and omits the self-timer.

The L1 also introduced the folding rewind crank layout that distinguishes it from the earlier VT body.

Relationship to Canon L2

The Canon L1 should also be distinguished from the Canon L2. The L2 is a simpler model with a top speed of 1/500 second, while the L1 reaches 1/1000 second. The L1 also has a more complete flash synchronization system.

Relationship to Canon VL

The later Canon VL is visually close to the L1 but adds a self-timer and is associated with the stainless-steel shutter curtain generation. Japanese Leica Copies notes that the only obvious external difference between the VL and L1 is the self-timer, although internal and shutter-curtain changes are also important.

Because some late bodies may show mixed features or replacement parts, identification should use the model engraving, self-timer presence, shutter curtain type, serial number and body details together.

Identification

The Canon L1 is identified by its LTM screw mount, top film advance lever, folding rewind crank, lack of self-timer, two-dial shutter layout, three-mode rotating finder, parallax correction pin on the accessory shoe and MODEL L1 engraving on the base plate.

Common listing names include Canon L1, Canon L-1, Canon Model L1, Canon L1 LTM, Canon L1 rangefinder, Canon L1 black and Canon L1 chrome. Black and chrome should be treated as finish variants rather than separate base model names.

Collector Notes

The Canon L1 is a desirable late Canon screw-mount camera because it combines the modern loading and handling ideas of the VT generation with a more conventional top lever wind. It is also less common than some later Canon rangefinders.

Collectors should check the rangefinder alignment, viewfinder rotation, shutter curtains, folding rewind crank, film advance lever, flash sync switch, accessory shoe parallax pin, base-plate model engraving and whether the camera has cloth or stainless-steel shutter curtains.

The Canon L1 should be treated as a separate LTM film camera because its top-lever-wind body, 1/1000-second shutter, folding rewind crank and no-self-timer configuration distinguish it from the Canon VT, L2 and VL.

---
