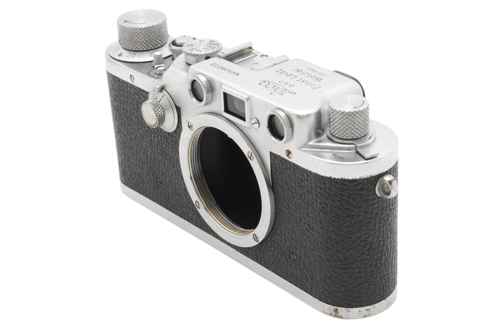

Leica IIIc

Leica IIIc

If the Leica IIIb was the ergonomic peak of old-world manufacturing, the Leica IIIc was the rugged blueprint for the modern era. When World War II broke out, the German military needed cameras that could survive the brutal conditions of the battlefield, from freezing high-altitude aircraft to muddy trenches. The old method of building a camera out of multiple thin pieces of brass screwed together simply wasn't going to cut it anymore.

Leica completely overhauled the internal structure, introducing a single-piece die-cast chassis. This meant the camera's core was a solid block of metal, ensuring that the critical distance between the lens mount and the film plane would never warp, even if the camera took a heavy beating. Because of this new skeleton, the IIIc is actually about 3mm longer than all the Leicas that came before it.

Ergonomically, it carried over the best part of the IIIb: the rangefinder and viewfinder eyepieces were placed right next to each other for quick, seamless focusing and framing. It retained the blistering 1/1000s top shutter speed and the front-mounted slow speed dial. However, because the body was slightly longer, none of the older Leica leather cases or baseplates fit the new IIIc!

History

The history of the Leica IIIc is a chaotic, fascinating reflection of the 1940s. It is a camera born in war and adapted in peace.

The Wartime Quirks (1940 - 1945) Because the IIIc was produced during WWII, material shortages led to some legendary quirks. The most famous is the "Red Curtain" shutter. When Leica ran out of their standard black rubberized shutter cloth, they famously repurposed red parachute silk (often sourced from Kodak) for the shutter curtains on some batches. These red-curtain IIIc's, especially those stamped with a "K" (for Kugellager, meaning ball-bearing shutter mechanisms for cold weather), are highly prized museum pieces today. Many wartime models also feature military engravings like Luftwaffen-Eigentum (Air Force Property) or Kriegsmarine (Navy).

The "Stepper" Detail Early wartime IIIc models feature a distinct physical trait known to collectors as the "Stepper." If you look under the rewind lever on these early models, there is a physical "step" machined into the top plate. Leica eventually smoothed this out in later production runs to save manufacturing time.

Post-War Survival (1946 - 1951) After the war, the Leitz factory remarkably survived the bombings and resumed civilian production of the IIIc. However, rubber shortages in the late 1940s meant they couldn't produce their standard vulcanite grip material. Instead, they used a rougher, bumpy material that collectors now affectionately call "Sharkskin."

Sources

• [1] CameraQuest. Leica Screw Mount Camera Guide. https://www.cameraquest.com
• [2] Macfilos. The Barnack Leicas: A user's guide to the LTM cameras. https://www.macfilos.com
• [3] Ken Rockwell. Leica History and Timeline. https://www.kenrockwell.com
• [4] Leica Wiki. Leica IIIc. https://wiki.l-camera-forum.com
• [5] 35mmc. Shooting a wartime Leica IIIc. https://www.35mmc.com
